T-shaped experiment maze LE844

for animal researchfor behavioral researchfor rats

Overview
Popular test for the investigation of spatial learning and memory.

Product summary

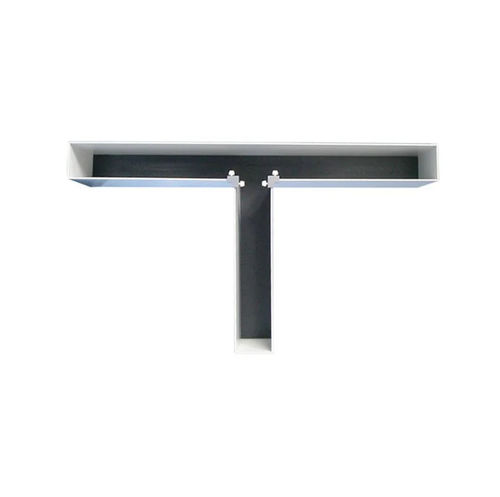

The T-maze developed by BIOSEB is used to assess cognitive ability in rodents. The T-shaped maze is manufactured in a non-reflective material and color that does not retain odors. It is available in configurations appropriate for mice and for rats.

Parameters Measured

• Animal position and number of entries into the different sectors
• Animal position, speed, distance and additional tracking metrics

Models

• LE843D — T Maze with Doors, Mouse
• LE844D — T Maze with Doors, Rat
• LE844DL — T Maze with Doors, Large Rat

Documentation
TY-MAZE - PDF (product brochure / datasheet available)

Technical specifications

• Dimensions - Animal container: T-maze Mice - Arms: 30 x 6 x 15 cm (12 x 2.5 x 6 in) (L x W x H)
• Dimensions - Animal container: T-maze Rat - Arms: 50 x 10 x 25 cm (20 x 4 x 10 in) (L x W x H)
• Dimensions - Animal container: T-maze Large Rat - Arms: 50 x 15 x 45 cm (20 x 6 x 18 in) (L x W x H)
• Materials: Methacrylate
• Materials: Mice: Grey floors/wall
• Materials: Rats: Black floor with grey walls
