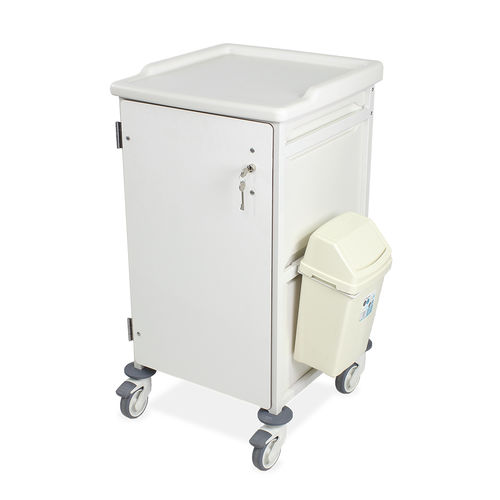

Hospital trolley CTINFEM1/10/3S2D/HSB
infection controlplasticmetal

Hospital trolley - CTINFEM1/10/3S2D/HSB - Bristol Maid Hospital Metalcraft - infection control / plastic / metal
Hospital trolley - CTINFEM1/10/3S2D/HSB - Bristol Maid Hospital Metalcraft - infection control / plastic / metal
Add to favorites
Compare this product
Go to the Bristol Maid Hospital Metalcraft website for more information

Characteristics

Applications
hospital
Function
infection control
Material
plastic, metal
Components
with tray, 1-door, 3-tray, 2-tray, 5-tray, with waste bin
Configuration
mobile
Other characteristics
with electronic lock, secure

Description

FEATURES

  • Trolleys designed for use when treating patients infected with multi-resistant pathogens
  • Quick and easy disassembly to assist thorough and deep cleaning
  • Fully welded mild steel frame
  • Recyclable polypropylene one-piece top and side panels with smooth surfaces and radiused edges (compatible with steam cleaning)
    • Top panel: raised edges on three sides provide defined grab points; integral front rim contains spillages (max load 30 kg)
    • Side panels: incorporate runners with positive stops to prevent trays being accidentally withdrawn
  • Carerails fitted to either side support a wide range of accessories
  • Solid grade laminate door and back panel providing security for tray contents
  • Two locking options: High Security Bolt Lock (supplied with two keys) or Electronic Push Button Lock (programmable four-digit code)
  • Trolley pre-configured with Waste Bin & Bracket (8 L)
  • Translucent, impact-resistant trays and dividers with smooth surfaces and radiused edges (compatible with steam cleaning and high-temperature machine washing)
  • Trays feature an integral handle with a plastic clip-on label cover (label strips supplied: white, blue, green, yellow, red)
  • Each tray supplied with 2 x long and 2 x short dividers
  • Max load per tray 5 kg
  • Polyurethane ring buffers for protection to both the trolley and building fabric
  • 100 mm polymer castors, 2 with braking


DIMENSIONS (w x d x h)

  • Overall dimensions: 550 x 550 x 993 mm
  • Overall dimensions (with Overbridge): 600 x 550 x 1620 mm
  • Plastic top (internal): 455 x 455 mm at height 968 mm
  • Trays:
    • Shallow tray: 355 x 405 x 100 mm (internal)
    • Deep tray: 355 x 405 x 150 mm (internal)


PRODUCT CODES / VARIANTS

  • CTINFEM1/10/3S2D/HSB — 3 x 100 mm shallow trays + 2 x 150 mm deep trays; High Security Bolt Lock; Overall 550 x 550 x 993 mm


STANDARD COLOURS

  • Paint: Grey White


INCLUDED / SUPPLIED

  • Waste Bin & Bracket (8 L)
  • Trays and dividers as configured (see variant description)


TECHNICAL SPECIFICATIONS

  • Frame: Fully welded mild steel
  • Top & Side Panels: Recyclable polypropylene one-piece, smooth with radiused edges (steam-clean compatible)
  • Tray materials: Translucent, impact-resistant (compatible with steam cleaning and high-temperature machine washing)
  • Tray capacity: Max 5 kg per tray; Plastic top max load 30 kg
  • Tray configuration (example variant): 3 x shallow (100 mm) + 2 x deep (150 mm)
  • Locks: High Security Bolt Lock (two keys) or Electronic Push Button Lock (programmable 4-digit code)
  • Castors: 100 mm polymer castors, two locking
  • Buffers: Polyurethane ring buffers
  • Accessories: Waste bin & bracket (8 L), label strips (white, blue, green, yellow, red), dividers (2 long & 2 short per tray)
