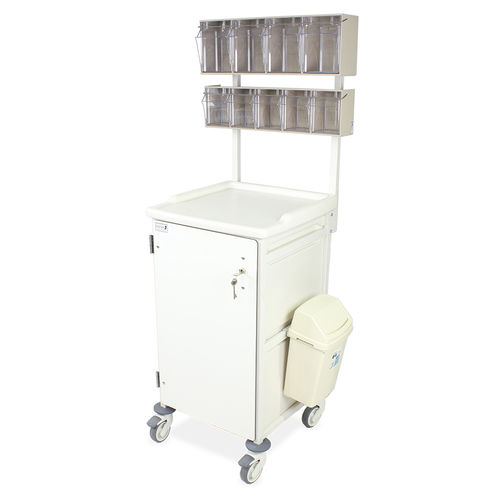

Anesthesia trolley CTANAEM1/10/3S2D/HSB

storagepatient careplastic

FEATURES

• Trolleys designed for anaesthesia service and storage of consumables and small devices
• Quick & easy disassembly to enable thorough cleaning
• Fully welded mild steel frame
• Recyclable polypropylene one-piece top & side panels with smooth surfaces and radiused edges (compatible with steam cleaning)
• Top panel – raised edges on three sides give defined grab points for pushing; integral front rim contains spillages (top max load 30 kg)
• Side panels – runners with positive stops to prevent trays from being withdrawn accidentally
• Carerails on either side to accept a wide range of accessories
• Solid grade laminate door & back panel for secure tray storage
• Two locking options available:
  • High Security Bolt Lock – supplied with two keys
  • Electronic Push Button Lock – programmable four-digit code
• Standard pre-configuration includes:
  • Overbridge, mild steel
  • Four-compartment tilt bin, mild steel
  • Five-compartment tilt bin, mild steel
  • Waste bin & bracket, 8 litre
• Translucent, impact-resistant trays & dividers with smooth surfaces and radiused edges (compatible with steam cleaning / high-temperature machine washing)
• Trays feature integral handle with clip-on plastic label cover; coloured label strips supplied (white, blue, green, yellow & red)
• Each tray supplied with 2 long & 2 short dividers
• Maximum load per tray: 5 kg
• Polyurethane ring buffers to protect the trolley and surrounding fabric
• 100 mm polymer castors, two braked

DIMENSIONS (w x d x h)
Overall dimensions: 550 x 550 x 993 mm
Overall dimensions (with overbridge): 600 x 550 x 1620 mm
Plastic top (internal): 455 x 455 mm at height 968 mm
Trays:
Shallow tray (internal): 355 x 405 x 100 mm
Deep tray (internal): 355 x 405 x 150 mm


STANDARD COLOURS

• Paint: Grey White

VARIANTS / PRODUCT CODES
Code | Description | Overall dimensions (W x D x H)
CTANAEM1/10/3S2D/HSB | 3 x 100 mm, 2 x 150 mm trays, High Security Bolt Lock | 550 x 550 x 993 mm
CTANAEM1/10/4S1D/HSB | 4 x 100 mm, 1 x 150 mm trays, High Security Bolt Lock | 550 x 550 x 993 mm
CTANAEM1/10/6S/HSB | 6 x 100 mm trays, High Security Bolt Lock | 550 x 550 x 993 mm
CTANAEM1/10/3S2D/EPB | 3 x 100 mm, 2 x 150 mm trays, Electronic Push Button Lock | 550 x 550 x 993 mm
CTANAEM1/10/4S1D/EPB | 4 x 100 mm, 1 x 150 mm trays, Electronic Push Button Lock | 550 x 550 x 993 mm
CTANAEM1/10/6S/EPB | 6 x 100 mm trays, Electronic Push Button Lock | 550 x 550 x 993 mm


OPTIONS / ACCESSORIES (examples included or available)

• Security seals
• Overbridge
• Tilt bins (various compartment configurations)
• Adjustable defibrillator platform
• Alcohol gel holder
• Airway tube holder
• Debris bin & bracket / bucket support bracket / bowl support & bracket
• Document holder
• Catheter racks
• Cylinder holder (C/CD/D size)
• Infusion pole & bracket
• Phlebotomy armrest
• Sharps box holder / bracket
• Suction pump shelf
• Work flap
• Apron dispenser (roll)
• Glove / mask box holders
• Laptop holder (removable or fixed swing arm)
• Polymer castors
• Additional label strips, dividers and trays

TECHNICAL SPECIFICATIONS

• Frame: fully welded mild steel
• Top & side panels: recyclable one-piece polypropylene
• Door & back panel: solid grade laminate
• Tray material: translucent impact-resistant polymer (compatible with steam/high-temperature washing)
• Tray maximum load: 5 kg; Top maximum load: 30 kg
• Buffers: polyurethane ring type
• Castors: 100 mm polymer, two braked
• Locking: High Security Bolt Lock (mechanical) or Electronic Push Button Lock (programmable)
• Compatibility: configured for anaesthesia use and accepts a broad range of CT-range accessories
