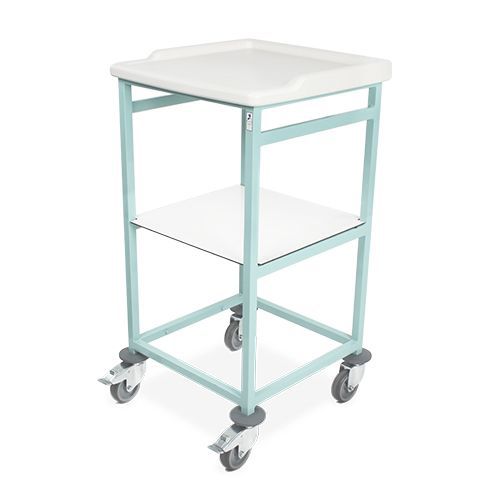

Medical trolley CTBASIM1/10

hospitalinfection controltreatment

Overview
Single-column procedure trolley designed for clinical and care environments. Modular design allows upgrade with side panels and trays; engineered for simple disassembly to support deep cleaning and infection control.

Key features

• Single-column, easy-clean procedure trolley
• Upgradeable with side panels and accessory trays
• Quick disassembly for thorough cleaning (compatible with steam cleaning)
• Fully welded mild steel frame
• One-piece recyclable polypropylene top with smooth radiused edges
• Raised edges on three sides for defined push/grab points; front rim contains spillages (top load max 30 kg)
• Solid-grade laminate full-width removable shelves (max load per shelf 5 kg)
• Carerails on both sides to support accessories
• Polyurethane ring buffers for protection
• 100 mm pressed-steel castors, two braked

Dimensions (W x D x H)
Overall: 550 x 550 x 993 mm
Plastic top (internal): 455 x 455 mm at 968 mm height
Full-width shelves (internal): 420 x 420 mm at heights 193 mm & 554 mm

Standard colours

• Paint: Spearmint

Variants
CTBASIM1/10 — Top panel, no shelves — 550 x 550 x 993 mm
CTBASIM1/10/1FWS — 1 x full-width shelf — 550 x 550 x 993 mm
CTBASIM1/10/2FWS — 2 x full-width shelves — 550 x 550 x 993 mm

Technical specifications

• Frame: Fully welded mild steel
• Top: One-piece recyclable polypropylene top with radiused edges (steam-clean compatible)
• Shelves: Solid-grade laminate full-width, removable (max load 5 kg per shelf)
• Top load capacity: Max 30 kg (integral front rim contains spillages)
• Castors: 100 mm pressed-steel, two braked
• Buffers: Polyurethane ring buffers
• Accessory support: Carerails fitted to both sides
• Finish: Painted (Spearmint)
• Overall dimensions: 550 x 550 x 993 mm
• Plastic top internal: 455 x 455 mm at 968 mm height
• Full-width shelf internal: 420 x 420 mm (shelf heights 193 mm & 554 mm)

Recommended applications

• Hospital wards, clinics and care units for procedure and point-of-care use
• Suitable where easy cleaning, accessory support and controlled spill containment are required
