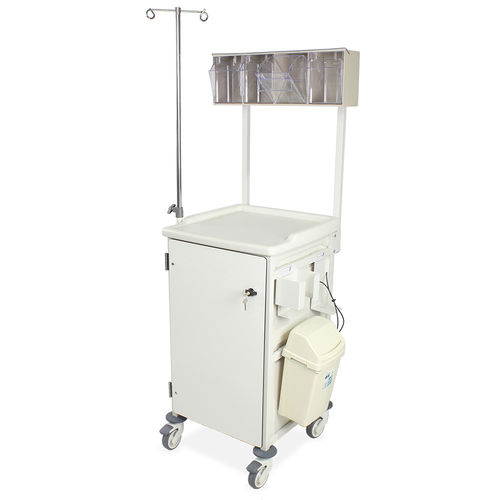

Medical trolley CTMEDSM1/10/3S2D/CA

hospitalfor consumablesfor instruments

OVERVIEW

• Caretray Trolley designed for medical and surgical environments to store and transport instruments, consumables and clinical supplies.
• Quick disassembly for thorough cleaning; compatible with steam cleaning and high-temperature machine washing.

KEY FEATURES

• Fully welded mild steel frame for structural integrity.
• Recyclable one-piece polypropylene top and side panels with smooth surfaces and radiused edges to assist cleaning and infection control.
• Top panel with raised edges on three sides to provide push handles and an integral front rim to contain spillages (top panel max load 30 kg).
• Side panels incorporate runners with positive stops to prevent trays from being accidentally withdrawn.
• Carerails fitted to either side to support a wide range of accessories and configuration options.
• Solid-grade laminate door and back panel to secure tray contents.
• Two locking options:
  • CAM Lock with wing handle – supplied with two keys
  • Electronic push-button lock – programmable 4-digit code
• Pre-configured accessories include:
  • Overbridge (mild steel)
  • Four-compartment tilt bin (mild steel)
  • Infusion pole and bracket
  • 8 L waste bin and bracket
  • Glove/mask box holder (one box)
  • Sharps box holder
• Translucent, impact-resistant trays and dividers with smooth surfaces and radiused edges (compatible with steam cleaning/high-temperature washing).
• Trays feature integral handles with clip-on plastic label covers; coloured label strips supplied (white, blue, green, yellow, red).
• Each tray supplied with two long and two short dividers. Max load per tray: 5 kg.
• Polyurethane ring buffers to protect trolley and building fabrics; 100 mm polymer castors, two braked.

DIMENSIONS (W x D x H)
Overall: 550 x 550 x 993 mm
With Overbridge: 600 x 550 x 1620 mm
Plastic top (internal): 455 x 455 mm at height 968 mm
Trays:
Shallow (internal): 355 x 405 x 100 mm
Deep (internal): 355 x 405 x 150 mm

STANDARD COLOURS

• Paint: Grey White

AVAILABLE CODES / CONFIGURATIONS

• CTMEDSM1/10/3S2D/CA — 3 x 100 mm, 2 x 150 mm trays, CAM Lock with wing handle
• CTMEDSM1/10/4S1D/CA — 4 x 100 mm, 1 x 150 mm trays, CAM Lock with wing handle
• CTMEDSM1/10/6S/CA — 6 x 100 mm trays, CAM Lock with wing handle
• CTMEDSM1/10/3S2D/EPB — 3 x 100 mm, 2 x 150 mm trays, Electronic push-button lock
• CTMEDSM1/10/4S1D/EPB — 4 x 100 mm, 1 x 150 mm trays, Electronic push-button lock
• CTMEDSM1/10/6S/EPB — 6 x 100 mm trays, Electronic push-button lock

TECHNICAL SPECIFICATIONS

• Commercial name: Caretray Trolley
• Frame: Fully welded mild steel
• Top & side panels: Recyclable one-piece polypropylene
• Tray types: Shallow 355 x 405 x 100 mm; Deep 355 x 405 x 150 mm
• Tray max load: 5 kg (per tray)
• Top panel max load: 30 kg
• Castors: 100 mm polymer, two braked
• Buffers: Polyurethane ring buffers
• Locking: CAM Lock with wing handle (2 keys) or Electronic push-button (4-digit code)
• Typical supplied accessories: overbridge, tilt bin, infusion pole/bracket, 8 L waste bin/bracket, glove/mask box holder, sharps box holder
• Standard finish: Paint Grey White
