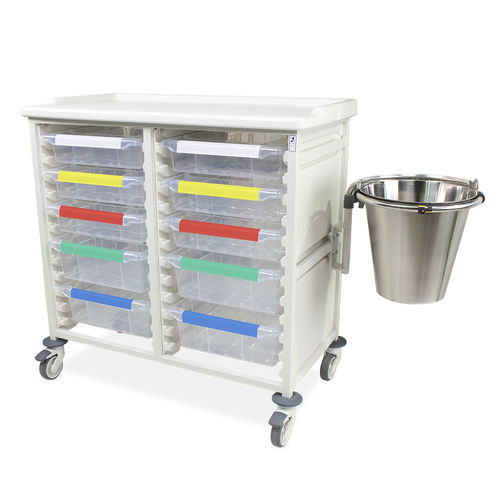

Medical trolley CTPLASM2/10/6S4D

hospitalfor consumablesstorage

FEATURES

• Trolley suitable for use within A&E / Plaster Room.
• Quick & easy disassembly to assist thorough & deep cleaning.
• Fully welded mild steel frame.
• Recyclable polypropylene one-piece top & side panels with smooth surfaces and radiused edges; compatible with steam cleaning.
• Top Panel - Raised edges on three sides provide defined grab points to act as push handles; integral front rim contains spillages. Maximum top load: 30 kg.
• Side Panels - Incorporate runners with positive stops preventing trays from being accidentally withdrawn; symmetrical design allows tray insertion from either side.
• Carerails fitted to either side to support a wide range of accessories.
• Trolley pre-configured with the following accessories: Bucket Support & Bracket; Stainless Steel Graduated Bucket, 15 Litre.
• Translucent, impact-resistant trays & dividers with smooth surfaces and radiused edges (compatible with steam cleaning / high temperature machine washing).
• Trays feature an integral handle with a plastic clip-on label cover (coloured label strips supplied: white, blue, green, yellow & red).
• Each tray supplied with 2 long and 2 short dividers.
• Polyurethane ring buffers to protect both the trolley and building fabric.
• 100 mm polymer castors, two braked.

DIMENSIONS (W x D x H)
Overall Dimensions - 1005 x 550 x 993 mm
Plastic Top - 915 x 455 mm (internal) at height 968 mm
Trays:
Shallow Tray - 355 x 405 x 100 mm (internal)
Deep Tray - 355 x 405 x 150 mm (internal)

LOAD & CAPACITY

• Max load per tray: 5 kg.
• Top panel max load: 30 kg.

INCLUDED ACCESSORIES

• Bucket Support & Bracket.
• Stainless Steel Graduated Bucket, 15 Litre.
• Set of translucent trays and dividers as per chosen configuration; coloured label strips (white, blue, green, yellow, red).

MATERIALS & CLEANING

• Frame: mild steel, fully welded.
• Top & side panels: recyclable polypropylene one-piece construction.
• Trays/dividers: impact-resistant polypropylene (compatible with steam cleaning and high-temperature machine washing).
• Design focused on smooth surfaces and radiused edges for infection control and easy decontamination.

STANDARD COLOURS

• Paint: Grey White.

VARIANTS & TRAY CONFIGURATIONS

• CTPLASM2/10/6S4D — 6 x 100 mm shallow trays and 4 x 150 mm deep trays (example configuration shown on product page).
• CTPLASM2/10/8S2D — 8 x 100 mm shallow trays and 2 x 150 mm deep trays (example configuration shown on product page).

TECHNICAL SPECIFICATIONS

• Commercial name: Caretray Trolley - Plaster
• Frame: Fully welded mild steel
• Top & side panels: Recyclable polypropylene
• Tray internal dimensions: shallow 355 x 405 x 100 mm; deep 355 x 405 x 150 mm
• Plastic top internal size: 915 x 455 mm; top height: 968 mm
• Overall dimensions: 1005 x 550 x 993 mm
• Max load per tray: 5 kg; top panel max load: 30 kg
• Castors: 100 mm polymer castors (2 braked)
• Accessories supplied (example): Bucket Support & Bracket; Stainless Steel Graduated Bucket 15 L
• Tray label system: integral handle with clip-on label cover; coloured label strips supplied
• Cleaning compatibility: steam cleaning and high-temperature machine washing
• Standard paint colour: Grey White
• Example product codes (page variants): CTPLASM2/10/6S4D; CTPLASM2/10/8S2D
