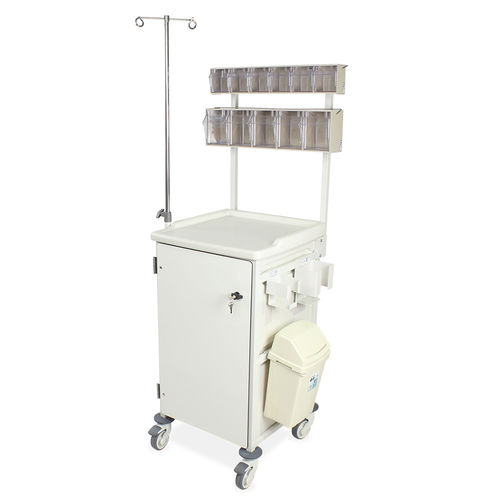

Intensive care trolley CTCRITM1/10/3S2D/CA

for consumablesfor medicinemedicine distribution

FEATURES

• Trolleys suitable for use with critical care environments
• Quick and easy disassembly to assist thorough cleaning
• Fully welded mild steel frame
• Recyclable one-piece polypropylene top and side panels with smooth surfaces and radiused edges (compatible with steam cleaning)
• Top panel: raised edges on three sides provide push/grab points; integral front rim contains spillages (max load 30 kg)
• Side panels: runners with positive stops prevent accidental tray withdrawal
• Carerails on both sides support a wide range of accessories
• Solid grade laminate door and back panel secure tray contents
• Two locking options:
  • CAM lock with winged handle — supplied with two keys
  • Electric push-button lock — programmable 4-digit code
• Trolley pre-configured with accessories:
  • Overbridge, mild steel
  • Five-compartment tilt bin, mild steel
  • Six-compartment tilt bin, mild steel
  • Alcohol gel holder
  • Infusion pole & bracket
  • Waste bin & bracket, 8 L
  • Glove/mask box holder (one box)
• Translucent, impact-resistant trays and dividers with smooth surfaces and radiused edges (compatible with steam cleaning and high-temperature machine washing)
• Trays with integral handle and plastic clip-on label cover; coloured label strips supplied (white, blue, green, yellow, red)
• Each tray supplied with 2 long and 2 short dividers
• Max load per tray 5 kg
• Polyurethane ring buffers protect trolley and facility fabric
• 100 mm polymer castors, 2 braked

DIMENSIONS (w x d x h)

• Overall: 550 x 550 x 993 mm
• With overbridge: 600 x 550 x 1620 mm
• Plastic top internal: 455 x 455 mm at height 968 mm
• Trays:
  • Shallow tray: 355 x 405 x 100 mm (internal)
  • Deep tray: 355 x 405 x 150 mm (internal)

STANDARD COLOURS

• Paint: Grey White

PRODUCT VARIANTS (table)
Code — Description — Overall Dimensions (W x D x H)
CTCRITM1/10/3S2D/CA — 3 x 100 mm, 2 x 150 mm trays, CAM lock with wing handle — 550 x 550 x 993 mm
CTCRITM1/10/4S1D/CA — 4 x 100 mm, 1 x 150 mm trays, CAM lock with wing handle — 550 x 550 x 993 mm
CTCRITM1/10/6S/CA — 6 x 100 mm trays, CAM lock with wing handle — 550 x 550 x 993 mm
CTCRITM1/10/3S2D/EPB — 3 x 100 mm, 2 x 150 mm trays, electric push-button lock — 550 x 550 x 993 mm
CTCRITM1/10/4S1D/EPB — 4 x 100 mm, 1 x 150 mm trays, electric push-button lock — 550 x 550 x 993 mm
CTCRITM1/10/6S/EPB — 6 x 100 mm trays, electric push-button lock — 550 x 550 x 993 mm


TECHNICAL SPECIFICATIONS

• Frame: fully welded mild steel
• Top & side panels: recyclable one-piece polypropylene
• Tray material: translucent, impact-resistant polymer (compatible with steam cleaning and high-temperature machine washing)
• Tray handling: integral handle with plastic clip-on label cover; coloured label strips supplied (white, blue, green, yellow, red)
• Tray capacities: max load per tray 5 kg; top panel max load 30 kg
• Dividers supplied: 2 long + 2 short per tray; additional dividers available
• Castors: 100 mm polymer castors, two braked
• Bump protection: polyurethane ring buffers
• Locking options: CAM lock with wing handle (2 keys) or programmable electronic push-button 4-digit lock
• Standard finish: paint — Grey White
• Typical overall size: 550 x 550 x 993 mm (600 x 550 x 1620 mm with overbridge)
• Compatible accessories: overbridge, tilt bins, alcohol gel holder, infusion pole & bracket, waste bin & bracket (8 L), glove/mask box holder, catheter racks, shelves, laptop holders, castors and other CT-range accessories
