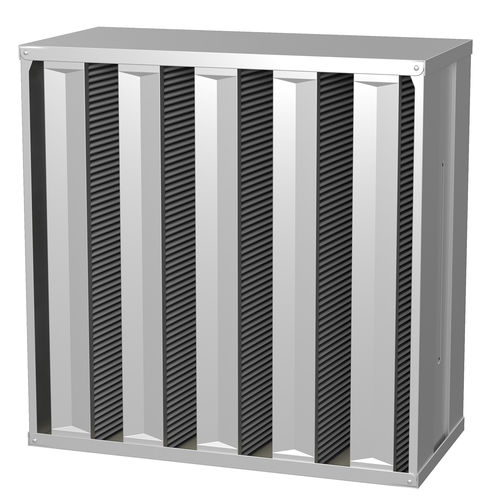

Activated carbon filter cartridge GigaPleat NXPC

pleatedgasair

Product overview
GigaPleat NXPC is a V-cell molecular filter with a metal frame and high-cleanliness embedded adsorbents designed to remove VOCs, acids and bases. It is intended for cleanroom make-up air units and air recirculation units where single-type contaminant control is required.

Key features

• Low pressure drop
• Available in galvanized or stainless steel frames
• Low outgassing components
• High media cleanliness (suitable for ISO clean environments)
• Predicted removal efficiency and lifetime using Camfil proprietary software
• Typical target gases: VOCs, acids, bases, ozone

Available variants (table)
Item Type | Pollutant | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa)
NXPC B | Bases | 610 | 610 | 292 | 2600 | 60
NXPC B | Bases | 305 | 610 | 292 | 1100 | 60
NXPC B | Bases | 595 | 595 | 292 | 2600 | 60
NXPC B | Bases | 289 | 595 | 292 | 1100 | 60
NXPC B | Bases | 592 | 592 | 292 | 2600 | 60
NXPC B | Bases | 287 | 592 | 292 | 1100 | 60
NXPC A | Acids | 610 | 610 | 292 | 2600 | 60
NXPC A | Acids | 305 | 610 | 292 | 1100 | 60
NXPC A | Acids | 595 | 595 | 292 | 2600 | 60
NXPC A | Acids | 289 | 595 | 292 | 1100 | 60
NXPC A | Acids | 592 | 592 | 292 | 2600 | 60
NXPC A | Acids | 287 | 592 | 292 | 1100 | 60
NXPC V | Organics | 610 | 610 | 292 | 2600 | 60
NXPC V | Organics | 305 | 610 | 292 | 1100 | 60
NXPC V | Organics | 595 | 595 | 292 | 2600 | 60
NXPC V | Organics | 289 | 595 | 292 | 1100 | 60
NXPC V | Organics | 592 | 592 | 292 | 2600 | 60
NXPC V | Organics | 287 | 592 | 292 | 1100 | 60

Typical applications

• Cleanroom air recirculation
• Cleanroom make-up (supply) air units

Technical specifications / remarks

• Application: Clean room recirculation air, clean room make-up air
• Filter frame: Stainless steel, Galvanized steel
• Media: Activated carbon, Impregnated activated carbon
• Max temperature: 40ºC
• Relative Humidity: 30% - 70%
• Gasket: Polyurethane, endless foamed, EPDM
• Sealant: Polyurethane
• Particle cleanliness: ISO Class 6
• Comment: Gasket position: 01 = downstream, 10 = upstream; Outgassing: individual VOC outgassing test on request
