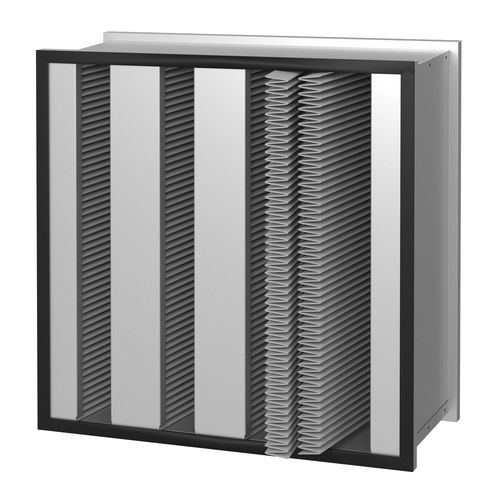

Activated carbon filter GigaPleat XPH

airfor clean roomsstainless steel

Overview
A V-Cell molecular filter with exchangeable panels in a single-header metal frame fitted with high-cleanliness embedded adsorbents for removal of VOCs, acids and bases. Designed for cleanroom make-up air units and air recirculation units, with options for up to two different contaminant types.

Key features

• Reduced waste through reusable housing
• Exchangeable panels
• Low outgassing components
• High media cleanliness
• Predicted removal efficiency and lifetime by Camfil's proprietary software
• Typical target gases: VOCs, acids, bases, ozone

Performance note
This filter removes gases and vapours responsible for odours, moderate or severe health effects, impacts to industrial processes or corrosion.

Available variants and typical dimensional/airflow data
Item Type | Pollutant | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Average (Pa)
XPH A | Acids | 592 | 592 | 292 | 2600 | 60
XPH B | Bases | 592 | 592 | 292 | 2600 | 60
XPH V | Organics | 592 | 592 | 292 | 2600 | 60
XPH A | Acids | 287 | 592 | 292 | 1100 | 60
XPH B | Bases | 287 | 592 | 292 | 1100 | 60
XPH V | Organics | 287 | 592 | 292 | 1100 | 60

Notes / Comments
Gasket position: 01 - downstream, 10 - upstream. Configuration XPH: 1 layer of 8 panels / full size housing. Outgassing: individual outgassing testing for VOC emissions available on request.

Technical specifications

• Application: Cleanroom make-up air and recirculation air units
• Filter frame: Stainless steel
• Media: Activated carbon; Impregnated activated carbon
• Max temperature (°C): 40°C
• Relative humidity: 30% - 70%
• Gasket: Polyurethane, EPDM
• Sealant: Polyurethane
• Particle cleanliness: ISO Class 6
