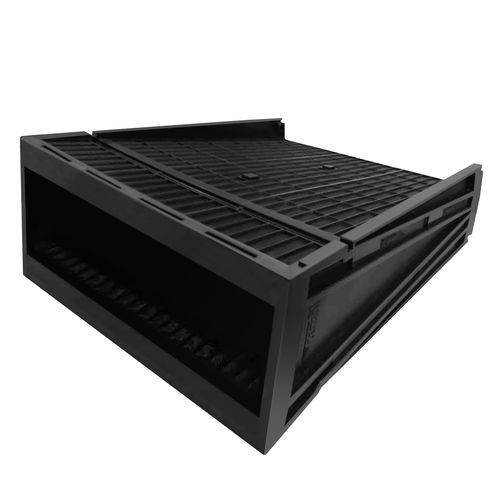

Activated carbon filter cartridge CamCarb VG

gaspolyesterABS

Product overview
A compact, refillable V-cell molecular filter filled with Camfil activated alumina or activated carbon. Designed for corrosion control and gas-phase air filtration in supply, recirculation and exhaust systems across commercial, industrial and process environments. Engineered to minimise total cost of ownership for removal of corrosive, odorous and irritant gases.

Key features

• V-cell molecular filter filled with Camfil activated carbon or CamPure media
• Integrated PET mesh allowing use of finer media and reduced dusting
• Predicted removal efficiency and service life via Camfil proprietary software
• UL 900 rated media options for selected variants
• Easy retrofit to existing housings or installation in Camfil hardware (PSSA housing, VG track)
• Suitable for commercial and industrial applications including heavy process environments

Available items / performance table
Item Type | Width (mm) | Height (mm) | Depth (mm) | Pressure drop (Pa) | Nominal weight (kg) | Nominal weight (lbs) | Optimum RH (%) | Optimum temperature (°C) | Optimum temperature (°F)
CamCarb VG300 SO2_H2S^³ | 300 | 300 | 300 | 315 | 14.5 | 32.0 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG300 Acids_H2S^³ | 300 | 300 | 300 | 315 | 14.5 | 32.0 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG300 VOC | 300 | 300 | 300 | 500 | 10.0 | 22.0 | 0 - 70 | Max. 40 | Max. 104
CamCarb VG300 H2S_Mercaptans | 300 | 300 | 300 | 500 | 10.0 | 22.0 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG300 Acids | 300 | 300 | 300 | 500 | 10.0 | 22.0 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG300 VOC_O3_Acid_H2S | 300 | 300 | 300 | 440 | 11.7 | 25.8 | 40 - 70 | 10 - 40 | 50 - 104
CamCarb VG300 VOC_O3_NO2_SO2 | 300 | 300 | 300 | 560 | 8.8 | 19.4 | 0 - 70 | Max. 40 | Max. 104
CamCarb VG300 Bases | 300 | 300 | 300 | 500 | 10.0 | 22.0 | 40 - 90 | 10 - 40 | 50 - 104
CamCarb VG440 SO2_H2S^³ | 300 | 150 | 440 | 94 | 6.5 | 14.3 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG440 Acids_H2S^³ | 300 | 150 | 440 | 94 | 6.5 | 14.3 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG440 VOC | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 0 - 70 | Max. 40 | Max. 104
CamCarb VG440 H2S_Mercaptans | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG440 Acids | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 40 - 90 | 10 - 60 | 50 - 140
CamCarb VG440 VOC_O3_Acid_H2S | 300 | 150 | 440 | 120 | 5.6 | 12.5 | 40 - 70 | 10 - 40 | 50 - 104
CamCarb VG440 VOC_O3_NO2_SO2 | 300 | 150 | 440 | 142 | 4.7 | 10.3 | 0 - 70 | Max. 40 | Max. 104
CamCarb VG440 Bases | 300 | 150 | 440 | 146 | 4.5 | 10.0 | 40 - 90 | 10 - 40 | 50 - 104

Notes

• V-cell modules are filled with activated alumina or activated carbon depending on target contaminants
• Designed for supply, recirculation and exhaust systems in commercial, industrial and process installations
• Filter performance will be affected if operated outside the stated temperature and relative humidity ranges
• VG300 recommended for supply air systems; VG440 suitable for supply and recirculation; pressure drop values given at VG300 1.25 m/s (250 fpm) and VG440 2.5 m/s (500 fpm)
• Variants marked with UL indication are filled with UL‑approved media

Technical specifications

• Frame: ABS, PET
• Media: Activated Carbon, Impregnated Activated Carbon, Impregnated Activated Alumina
• Gasket: EPDM, PU foam
• Operating temperature range: -21°C to 80°C
• Installation options: PSSA housing, VG track
• Application: Heavy‑duty disposable or refillable V‑cell modules for corrosion control of electronic and electrical equipment in heavy process industries; also suitable for odour removal in pulp & paper and wastewater treatment and for lighter applications such as airports, heritage buildings and commercial offices
