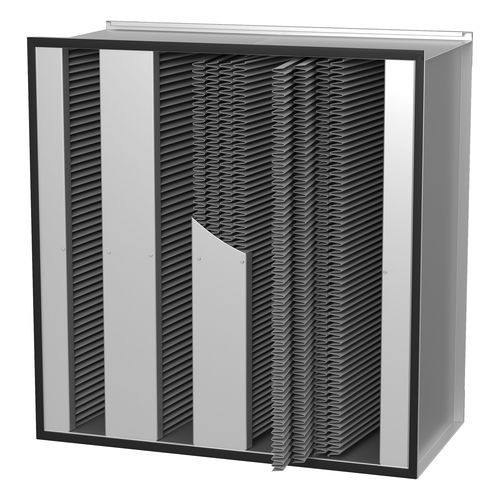

Activated carbon filter cartridge GigaPleat XPC

pleatedgasair

Description
A V‑Cell type molecular filter with exchangeable panels in a double‑header metal frame fitted with high‑cleanliness embedded adsorbents for removal of VOCs, acids and bases. Suited for cleanroom make‑up air and recirculation units; configurable for up to two different contaminant media combinations.

Key features

• Reduced waste through reusable metal housing
• Up to two media types can be combined in the same filter
• Exchangeable panels for targeted contaminant control
• Low outgassing components; individual VOC outgassing tests available on request
• High media cleanliness (ISO Class 6 particulate cleanliness)
• Predicted removal efficiency and lifetime using Camfil proprietary software
• Typical target gases: VOCs, acids, bases, ozone

Available variants (summary table)
XPC A | Acids | 610 | 610 | 292 | 2600 | 95
XPC B | Bases | 610 | 610 | 292 | 2600 | 95
XPC V | Organics | 610 | 610 | 292 | 2600 | 95
XPC A | Acids | 305 | 610 | 292 | 1100 | 95
XPC B | Bases | 305 | 610 | 292 | 1100 | 95
XPC V | Organics | 305 | 610 | 292 | 1100 | 95
XPC BA | Bases, acids | 610 | 610 | 292 | 2600 | 95
XPC AV | Acids, organics | 610 | 610 | 292 | 2600 | 95
XPC BV | Bases, organics | 610 | 610 | 292 | 2600 | 95
XPC BA | Bases, acids | 305 | 610 | 292 | 1100 | 95
XPC AV | Acids, organics | 305 | 610 | 292 | 1100 | 95
XPC BV | Bases, organics | 305 | 610 | 292 | 1100 | 95

Specifications (product summary)

• Application: Cleanroom recirculation air and cleanroom make‑up air
• Filter frame: Stainless steel or galvanised steel
• Media: Activated carbon; impregnated activated carbon
• Maximum operating temperature: 40°C
• Relative humidity range: 30%–70%
• Gasket materials: Polyurethane, EPDM
• Sealant: Polyurethane
• Particle cleanliness rating: ISO Class 6
• Gasket positions: 01 = downstream, 10 = upstream
• Typical configuration: 2 layers of 8 panels for full‑size housing
• Outgassing: Individual VOC outgassing tests available on request
