Activated carbon filter cartridge GigaPleat NXDP (DH)

pleatedgasair

Product overview

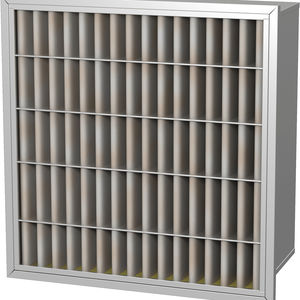

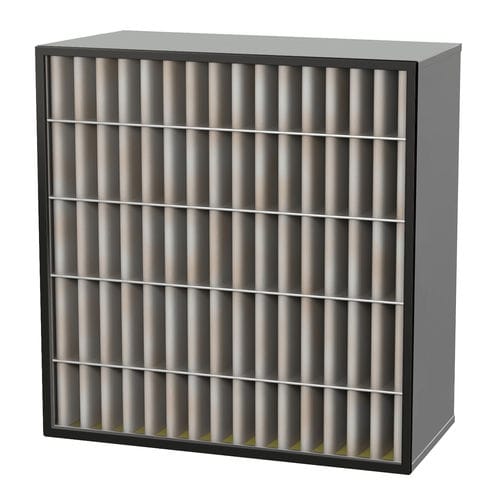

A deep-pleated molecular box filter GigaPleat NXDP (DH) with a customizable metal frame and embedded high‑cleanliness adsorbents for targeted removal of volatile organic compounds (VOCs), acidic and basic gases. Designed for cleanroom recirculation units and AHU/ceiling installations where multi‑contaminant control and low outgassing are required.

Key features

• Multiple media types (activated carbon, impregnated carbon, ion exchange resins) can be combined in one unit
• Low initial pressure drop suitable for AHU and recirculation systems
• Low outgassing components and individually VOC outgassing tested
• High particle cleanliness to protect downstream HEPA/ULPA stages
• Predicted removal efficiency and service life using Camfil proprietary software
• Typical target gases: VOCs, acids, bases, dopants, refractory vapours, ozone

Function
Removes gaseous and vapor contaminants that cause odors, corrosion, process impacts or health effects in controlled environments, helping protect processes and downstream filtration stages.

Available variants / Typical dimensions
Item Type | Pollutant | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa)
NXDP B | Bases | 592 | 592 | 292 | 3300 | 55
NXDP B | Bases | 287 | 592 | 292 | 1600 | 55
NXDP A | Acids | 592 | 592 | 292 | 3300 | 55
NXDP A | Acids | 287 | 592 | 292 | 1600 | 55
NXDP V | Organics | 592 | 592 | 292 | 3300 | 55
NXDP V | Organics | 287 | 592 | 292 | 1600 | 55
NXDP ABV | Bases, Acids, Organics | 592 | 592 | 292 | 3300 | 190
NXDP ABV | Bases, Acids, Organics | 287 | 592 | 292 | 1600 | 190

Technical specifications

• Application: Cleanroom recirculation air and cleanroom make‑up (AHU) air
• Filter frame: Stainless steel or galvanised steel
• Media: Activated carbon, impregnated activated carbon, ion exchange resins
• Maximum temperature: 40°C
• Relative humidity: 30%–70%
• Gasket: Polyurethane, EPDM
• Sealant: Polyurethane potting
• Particle cleanliness: ISO Class 6
• Comments: Gasket position options (01 downstream, 10 upstream). Units individually tested for VOC outgassing; removal and lifetime estimations available via Camfil software.
