Activated carbon filter CitySorb

airdentalfor healthcare facilities

Overview

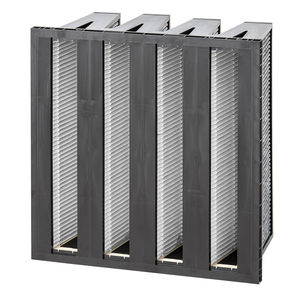

Compact V-bank filter with molecular media designed to remove gaseous contaminants in air handling units (AHUs). Suitable for retrofit or new installations to reduce low to moderate concentrations of common external and internal gaseous pollutants.

Key features

• V-bank configuration with molecular (activated carbon) media
• Removal of gaseous contaminants including ozone, NO₂, SO₂ and VOCs
• Suitable for moderate concentrations from external and internal sources
• Can be used to upgrade existing AHUs
• Classified according to ISO 10121-3

Available sizes / variants (table)
Item Type | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa) | ISO 10121 Ozone | ISO 10121 NO2 | ISO 10121 SO2 | ISO 10121 Toluene
OPKCS-242412-01PU | 592 | 592 | 292 | 3400 | 80 | MD 65 | vLD 60 | vLD 30 | MD 75
OPKCS-242012-01PU | 592 | 490 | 292 | 2800 | 80 | MD 65 | vLD 60 | vLD 30 | MD 75
OPKCS-241212-01PU | 592 | 287 | 292 | 1500 | 80 | MD 65 | vLD 60 | vLD 30 | MD 75

Technical specifications

• Application: Adsorption of odours and gases in AHU and ventilation applications
• Filter frame: Plastic moulded (PS)
• Media: Activated carbon (molecular media)
• Maximum temperature: 40° C
• Relative humidity: up to 70%
• Recommended final pressure drop: 2× initial pressure drop
• Separator: Hot‑melt
• Gasket: One‑piece PU gasket (position 01 in standard version)
• Sealant: Polyurethane
• Dimension standard: Filter front dimensions according to EN 15805
• Installation options: Front and side access housings and frames available
