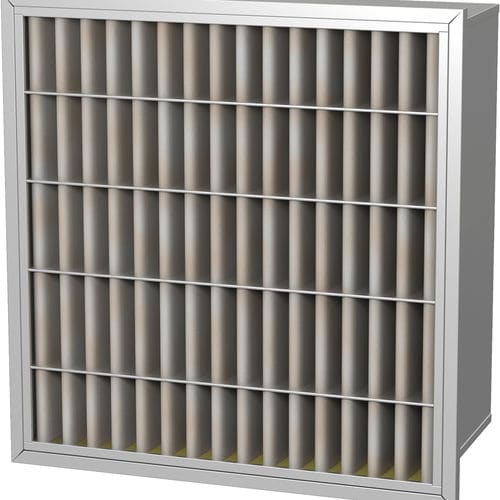

Pleated filter cartridge GigaPleat NXDP (PH)

gasairlaboratory

Overview
A deep-pleat molecular filter fitted with a customizable single-header metal frame and high-cleanliness embedded adsorbents for removal of VOCs, acids and bases. Suitable for cleanroom air recirculation units and ceiling installation where multi-contaminant removal is required.

Key features

• Multiple media types can be combined within the same filter
• Low pressure drop
• Low outgassing components; individually VOC outgassing tested
• High media cleanliness (ISO Class 6)
• Predicted removal efficiency and lifetime using Camfil proprietary software
• Typical target gases: VOCs, acids, bases, dopants, refractories, ozone

Molecular removal description
Removes gases and vapours responsible for odours, moderate to severe health effects, impacts to industrial processes or corrosion. Designed for trace molecular contaminant control in sensitive manufacturing, laboratory and cleanroom environments.

Variants (table)
Item Type | Pollutant | Width (mm) | Height (mm) | Depth (mm) | Airflow (m3/h) | Pressure drop Initial (Pa)
NXDP B | Bases | 592 | 592 | 292 | 3300 | 55
NXDP B | Bases | 287 | 592 | 292 | 1600 | 55
NXDP A | Acids | 592 | 592 | 292 | 3300 | 55
NXDP A | Acids | 287 | 592 | 292 | 1600 | 55
NXDP V | Organics | 592 | 592 | 292 | 3300 | 55
NXDP V | Organics | 287 | 592 | 292 | 1600 | 55
NXDP ABV | Bases, Acids, Organics | 592 | 592 | 292 | 3300 | 190
NXDP ABV | Bases, Acids, Organics | 287 | 592 | 292 | 1600 | 190

Characteristics / technical specifications

• Application: Cleanroom recirculation air, cleanroom make-up air
• Filter frame: Stainless steel or galvanised steel
• Max temperature (°C): 40
• Relative humidity: 30% - 70%
• Gasket: Polyurethane, EPDM
• Sealant: Polyurethane
• Particle cleanliness: ISO Class 6
• Gasket position: 01 = downstream, 10 = upstream
• Frame note: PH = Single Header
• Outgassing: Individually tested for VOC emissions
