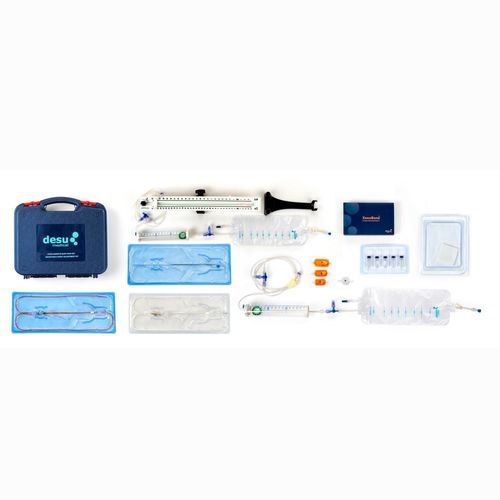

CSF drainage set DRS series

lumbargraduatedradiopaque

Product Overview
The Desu External Lumbar Drainage System is a sterile, ready-to-use kit for temporary diversion and controlled management of cerebrospinal fluid (CSF) via lumbar access. Intended for neurosurgical theatres, neurological ICUs and emergency neurology units, the set supports controlled CSF drainage for elevated intracranial pressure, postoperative CSF leaks and other neurosurgical indications.

System Overview
The kit is supplied complete with catheterization accessories and an external drainage circuit, eliminating the need for additional components or assembly in clinical settings.

Antibiotic Impregnated Lumbar Catheter
The catheter provides secure lumbar CSF access while delivering localized antibiotic protection.

• Length: 31 cm
• Inner Diameter (ID): 0.8 mm
• Outer Diameter (OD): 1.6 mm
• Material: Barium-impregnated silicone
• Drainage ports: 6 holes arranged in 4 rows (proximal)
• Radiopacity: High (barium + tantalum marker)
• Antibiotic impregnation: Clindamycin Hydrochloride and Rifampicin, controlled local release over 28 days

Catheterization Kit Components
Sterile insertion accessories included:

• Fixation tab for external stabilization to reduce migration or accidental removal
• Luer lock connector and distal cap for secure, leak-free connection
• Angled trocar for controlled subarachnoid access in constrained anatomy
• 14G Tuohy needle for initial spinal access
• Guidewire to facilitate catheter advancement during insertion

External Drainage System Components
Complete external CSF drainage circuit items included:

• 60 cm reinforced cord with locking mechanism to suspend the drainage chamber
• 30 cm vertical measuring scale (mmHg and cmH₂O) for pressure adjustment
• 150 ml drip chamber for initial collection and inspection
• 800 ml drainage bag with integrated air filter for sterile containment
• Two three-way connectors for line integration
• Hydrophobic filter to prevent airborne pathogens and moisture entry

Clinical Applications
Indications include:

• Traumatic brain injury with raised intracranial pressure
• Postoperative CSF leakage after spinal or cranial surgery
• Subarachnoid hemorrhage requiring pressure reduction
• Normal pressure hydrocephalus (NPH)
• Pseudotumor cerebri / Idiopathic Intracranial Hypertension (IIH)
• Ventriculitis management
• Diagnostic CSF sampling when prolonged drainage is required

Infection Prevention
The system combines an antibiotic-impregnated catheter, hydrophobic filter and sealed drainage pathway to reduce infection risk. The catheter provides localized delivery of Clindamycin Hydrochloride and Rifampicin over 28 days to limit colonization by common skin pathogens.

Sterilization and Packaging
All components are individually sterile-packed and the complete set is sterilized by ethylene oxide (EtO). The product is manufactured to international standards for external drainage devices and neurosurgical use.

Reference Code and Ordering Information
Reference Code | Product Description
LACK-ENDS-020 | Advanced EVD set with antibiotic lumbar catheter (Desu)

Manufacturer and Compliance
Desu implements evidence-based design, ISO-certified manufacturing and traceable production processes to support clinical use and device traceability.

Technical specifications

• Product name: Desu External Lumbar Drainage System
• Catheter length: 31 cm
• Catheter ID: 0.8 mm
• Catheter OD: 1.6 mm
• Catheter material: Barium-impregnated silicone
• Drainage ports: 6 holes in 4 rows (proximal)
• Radiopacity: High (barium + tantalum marking)
• Antibiotic impregnation: Clindamycin Hydrochloride and Rifampicin (28-day controlled release)
• Reinforced cord length: 60 cm (with locking mechanism)
• Vertical measuring scale: 30 cm (mmHg and cmH₂O)
• Drip chamber: 150 ml
• Drainage bag capacity: 800 ml (integrated air filter)
• Connectors: Three-way connectors x2
• Filters: Hydrophobic filter
• Sterilization: Ethylene oxide (EtO)
• Reference code: LACK-ENDS-020
