Wrist external fixation system

tubularadult

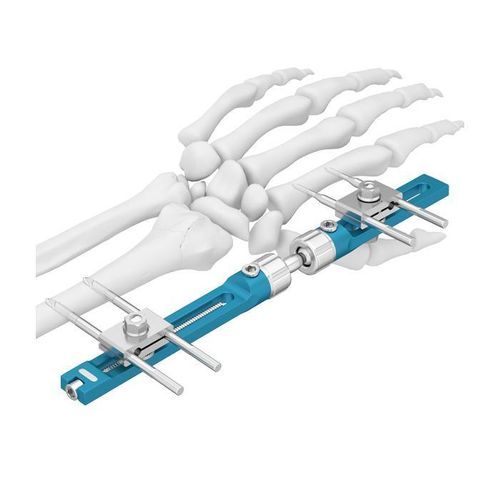

The system of External Fixator for Wrist and Forearm features a sliding set, clamp, ball joint, lightweight design, and upper locking bolt. It is designed for the fixation of fractures of the distal radius. Indications: - Sliding set allows distraction or compression. - Serrated contact ensures safety and stability when rotating the clamp. - The clamp can be rotated 360° lengthwise. - The ball joint can rotate up to 60°. - Lightweight design allows excellent biomechanics and is convenient for patient movement. - The upper locking bolt helps to more easily adjust the position of the bone screw. Feature: - Fractures of distal radius Screws: - 4.0mm Cortex Bone Screw - 4.0mm Cancellous Bone Screw Instrument Set: - External Fixator for Wrist and Forearm Instrument Set Technical Specifications / Characteristics: - Sliding set for distraction/compression - Serrated contact for safety and stability - Clamp rotation: 360° lengthwise - Ball joint rotation: up to 60° - Lightweight design for biomechanics and patient mobility - Upper locking bolt for bone screw adjustment - Compatible with 4.0mm cortex and cancellous bone screws - Includes dedicated instrument set
