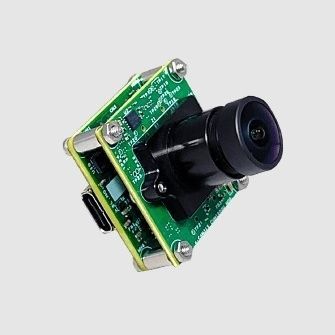

Camera for life sciences applications See3CAM_37CUGM - 3MP Monochrome Sony® IMX900

digitalHDR3 Mpx

Houses e-CAM315_CUMI900_MOD - 3 MP Camera Module based on Sony® Pregius S™ IMX900 sensor Global Shutter Technology Quad HDR (up to 120dB) for superior contrast handling Fast Auto-Exposure for quick adaptation to lighting changes Self-Trigger Functionality for automated activity-based capture Ultra high speed capture up to 1,00,000 fps * See3CAM_37CUGM is a 3.2MP USB 3.2 Gen1 Quad HDR monochrome camera featuring the Sony® Pregius S™ IMX900 sensor. This camera incorporates advanced features including Quad HDR, fast auto-exposure and global shutter technology, delivering sharp, high-quality images even in fast-moving and challenging lighting conditions. Its self-trigger functionality enables smart and automated image capture when monitored regions reach defined activity threshold, eliminating the need for external triggers. This capability enhances automation in applications such as conveyor systems and smart surveillance. The Quad Shutter Control function enables event capture at microsecond intervals, achieving an effective speed equivalent to 100,000 fps, making it ideal for specialized ultra-fast applications. This UVC-compliant camera can capture images at high frame rate (up to 838fps* with custom ROI) without any motion blur and its enhanced near-infrared (NIR) sensitivity ensures superior performance in low-light applications. Key features: Frame Rate: Up to 838 fps @ Custom ROI * Ultra high speed capture up to 1,00,000 fps * Refer pdfDatasheet for complete frame rate details. Output format: RAW 8-bit/12-bit Supported OS - Windows, Linux Unique ID for each camera Lightweight, versatile, and portable two-board solution
