Monitoring camera e-CAM56_CUQRB5

digital5 Mpxportable

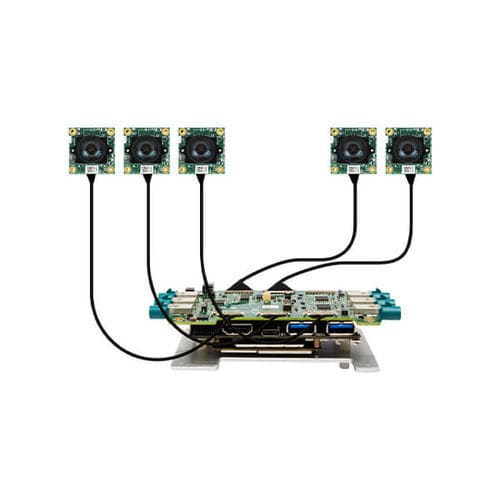

Global Shutter High Sensitivity Compatible with Qualcomm® Robotics RB5 kit (upto 5 cameras) Uses Qualcomm ® ISP for image processing Overview e-CAM56_CUQRB5 is a 5 MP MIPI CSI-2 multi-camera that features a 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor. This camera is designed to seamlessly integrate with Qualcomm® Robotics RB5 development kit and delivers best-in-class image output in uncompressed YUV format. With a global shutter function, this multi-camera enables distortion-free image capture of moving objects and ensures a high frame rate of 90fps. So, it is ideal for applications like traffic monitoring, factory automation, conveyor monitoring, and Automatic Number Plate Recognition (ANPR). It can support up to six camera modules and comes with a standard M12 lens holder for customers to use customized optics or lenses – depending on their applications. Key features: High-speed MIPI CSI-2 interface Standard M12 lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: MIPI CSI-2 Connector: Micro coaxial cable with I-PEX (CN2) connector Cable Length: 30cm (1m*) Sensor features: Sensor: IMX568 from Sony Pregius S Focus Type: Fixed focus Chroma: Color Shutter Type: Global Shutter Optical Format: 1/1.8" Output Format: RAW Bayer Pixel Size: 2.74 μm x 2.74 μm Sensor Active Area: 2472 (H) x 2064 (V) Array Size: 2472 (H) x 2128 (V) Lens Holder: M12 (S-Mount) DFOV: TBD Electrical & Mechanical: Operating Voltage: 3.3V +/- 5% Operating Temperature Range: -30°C to 70°C
