Inspection camera e-CAM810_CUMI678C_MOD

digital4KCMOS

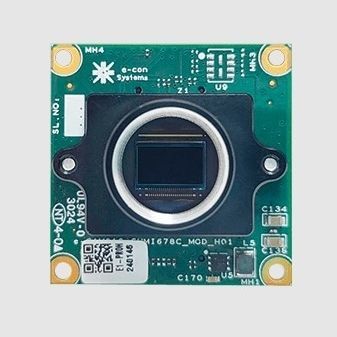

The e-CAM810_CUMI678C_MOD is a high-performance camera module powered by the Sony® STARVIS 2 IMX678 1/1.8" CMOS rolling shutter sensor, offering exceptional low-light performance and enhanced sensitivity to Near Infrared (NIR) light. This 8 MP sensor delivers high-quality images with a resolution of 3840x2160, making it suitable for applications requiring both visible and NIR imaging. Built for a variety of demanding applications, the e-CAM810_CUMI678C_MOD captures sharp and detailed images even in low-light environments, making it an ideal solution for industries such as security, surveillance, automotive, and industrial inspection. Module Features Sensor - Sony® Starvis 2 IMX678 Focus Type - Fixed Focus Chroma - Color Shutter Type - Rolling Shutter Optical Format - 1/1.8" Output Format - RGB RAW 10-bit/12-bit Pixel Size - 2.0 μm x 2.0 μm Sensor Active Area - 3856 (H) x 2176 (V) Key Features Frame Rate - 4K @ 72fps Output format - RGB RAW 10-bit/12-bit Compliance - FCC, RoHS Electrical and Mechanical Operating Voltage - 3.3V ±5% Operating Temperature Range - -30°C to +75°C Typical Power Consumption (W) - 0.773W Size in mm (l x b) - 30 x 30 mm
