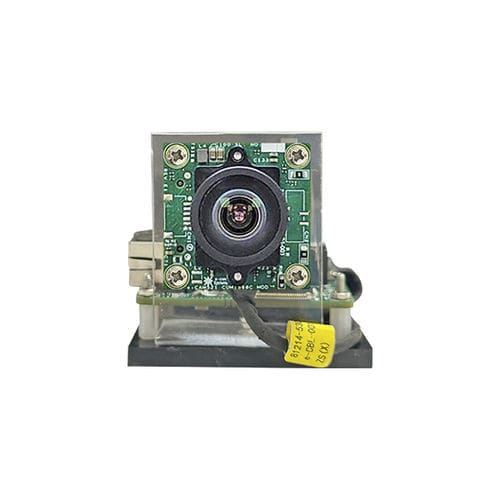

Medical camera e-CAM56_CUHSB - 5MP Sony® Pregius S IMX568

digital5 Mpxfixed

Global Shutter High Sensitivity Plugs into NVIDIA® Jetson AGX Orin / Thor developer kit Uses e-con's Proprietary TintE ISP for image processing Overview e-CAM56_CUHSB is an 5MP 10G Holoscan camera solution engineered for seamless integration with NVIDIA's Jetson AGX Thor and AGX Orin™ platforms. Powered by the Sony® Pregius S IMX568 global shutter sensor, it delivers distortion-free image capture of fast-moving objects and is fully compatible with the NVIDIA Holoscan SDK. This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By intelligently offloading computationally intensive ISP tasks, it achieves ultra-low latency while freeing the NVIDIA GPU and CPU. This hardware acceleration minimizes system latency and allows the host processor to fully focus on complex AI inference and model execution. The 10G Ethernet interface on the HSB board further enables deployment of advanced vision solutions that require the ultra-low latency essential for real-time AI applications. Key features: Output Format: Bayer / YUV 12-bit Standard S-mount lens holder for use with customized optics or lenses for various applications Lightweight, versatile, and portable design Interface: Interface: 10G HSB Connector: RJ45 Cable Length: 2m Sensor features: Sensor: IMX568 from Sony® Pregius S Focus Type: Fixed focus Chroma: Color Shutter Type: Global Shutter Optical Format: 1/1.8" Output Format: RGB RAW 10-bit/12-bit Pixel Size: 2.74 μm x 2.74 μm Sensor Active Area: 2472 (H) x 2064 (V) Array Size: 2472 (H) x 2128 (V) Lens Holder: M12 (S-Mount) FOV: TBD
