Monitoring camera NileCAM56

diagnosticdigital5 Mpx

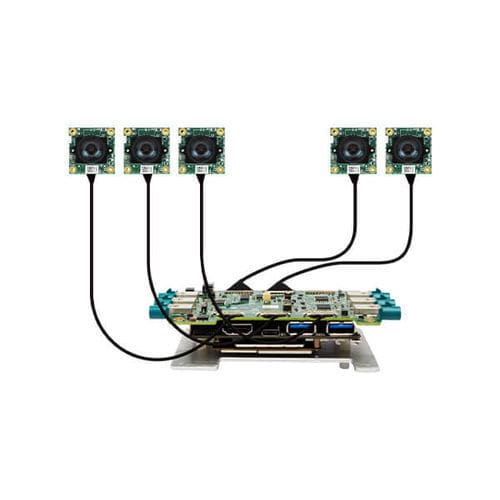

Global Shutter High Sensitivity GMSL2™ interface to transmit power and data up to 15m Multi-ROI capture with high frame rate upto 1164 fps* NileCAM56 is a 5 MP high sensitivity camera module with a 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor. This camera module can be connected to the NVIDIA® Jetson AGX Xavier™/NVIDIA® Jetson AGX Orin™ development kit using a GMSL 2 interface. It features a global shutter function, which ensures distortion-free image capture of fast-moving objects. Hence, it is the perfect choice for use cases, including automatic number plate recognition (ANPR), traffic monitoring, factory automation, and conveyor monitoring. NileCAM56 also offers an IP-rated (IP67) enclosure and 15m cable, ensuring reliability even in challenging environments. The camera module driver development, modifications, and porting services are available for any application platform as per customer needs. With its global shutter features, NileCAM56 ensures distortion-free image capture of fast-moving objects. Hence, it is ideal for applications like In-Vitro Diagnostic devices, Smart Traffic (ITS, ANPR), Industrial Automation, Drones and Robotic Arms. It can also connect up to four camera modules and offers a standard M12 lens holder with customized optics or lenses. Interface: Interface: GMSL2™ Connector: FAKRA connector Cable Length: 15m Sensor features: Sensor: IMX568 from Sony® Pregius S Focus Type: Fixed focus Chroma: Color Shutter Type: Global Shutter Optical Format: 1/1.8" Output Format: RAW Bayer Pixel Size: 2.74μm x 2.74μm Sensor Active Area: 2472 (H) x 2064 (V) Array Size: 2472 (H) x 2128 (V) Holder: M12 (S-Mount) FOV: TBD ;
