Diagnostic camera NileCAM56_CUOAGX

digital5 Mpxportable

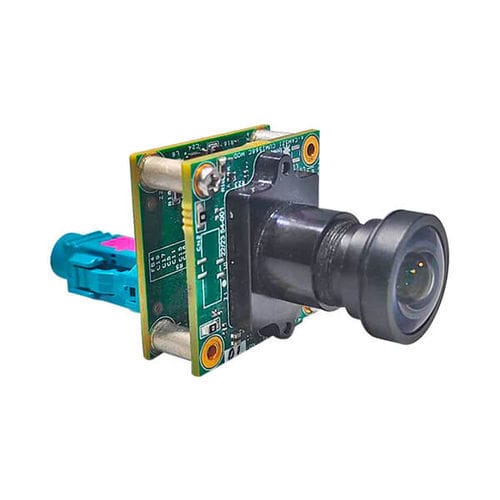

Global Shutter High Sensitivity Multi-ROI capture with high frame rate upto 1164 fps* Plugs into NVIDIA® Jetson AGX Orin™ developer kits (up to 8 cameras) GMSL interface to transmit power and data up to 15m External trigger support for synchronized multi-camera streaming Optional IP67-rated enclosure The NileCAM56_CUOAGX is a high-performance 5MP camera module designed for seamless integration with the NVIDIA® Jetson AGX Orin™ developer kit. Built on the 1/1.8" Sony Pregius S IMX568 back-side illuminated image sensor, this camera delivers exceptional image quality with superior low-light performance. Featuring a GMSL2 interface, the NileCAM56_CUOAGX ensures high-speed, long-distance data transmission with minimal latency. Its global shutter technology eliminates motion blur, making it ideal for capturing fast-moving objects with precision. With its global shutter features, NileCAM56_CUOAGX ensures distortion-free image capture of fast-moving objects. Hence, it is ideal for applications like In-Vitro Diagnostic devices, Smart Traffic (ITS, ANPR), Industrial Automation, Drones and Robotic Arms. It can also connect up to four camera modules and offers a standard M12 lens holder with customized optics or lenses. Key features: Refer pdfDatasheet for complete frame rate details. Output Format: YUV(NV12) High-speed MIPI CSI-2 interface to connect with the CPU S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements. Lightweight, versatile, and portable design Interface: Interface: GMSL2 Connector: FAKRA connector Cable length: 15m Module features: Sensor: : Sony® Pregius S IMX568 Focus Type: Fixed focus
