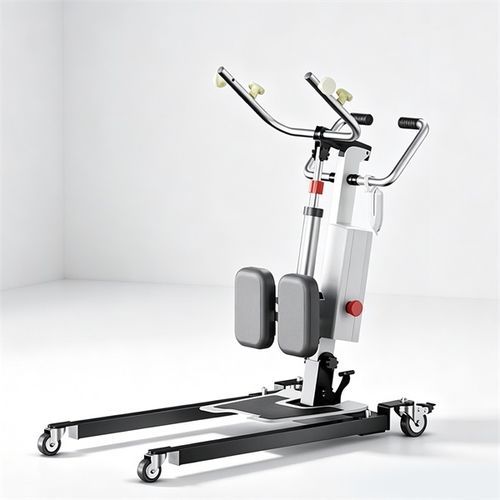

Electric patient lift FGBP01Fon castersadultfolding
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Configuration
- on casters
- Patient type
- adult
- Options
- lifting, folding
- Lifting capacity
200 kg
(440.9 lb)- Base width
Min.: 60 cm
(23.6 in)Max.: 85 cm
(33.5 in)- Base length
95 cm
(37.4 in)- Weight
Min.: 34 kg
(75 lb)Max.: 41 kg
(90.4 lb)
Description
Product overview
Core advantages
Product performance
Dimensions
Application scenarios
Specifications / Technical data
- FGBP01F electric sit‑stand lift for assisted sit‑to‑stand transfers, bed‑to‑chair movement and rehabilitation training
- Designed for hospitals, nursing homes and home care where safe controlled verticalization is required
Core advantages
- Foldable, space‑saving carbon‑steel frame with anti‑rust finish
- Medical‑grade, corrosion‑resistant easy‑clean surface
- ABS injection‑molded impact‑resistant components
- Electric lift mechanism for assisted patient standing
- 200 kg safe load capacity meeting clinical use demands
- Adjustable base width (600–850 mm) for narrow‑space access
- Foldable base for compact storage (folded size: 950×560×370 mm)
- Low‑profile stable base (110 mm) for easy bed and chair approach
- Padded knee supports and handlebars for patient comfort and safety
- Stainless steel casters for smooth, scratch‑free movement
- AC 100–240 V universal voltage compatibility
Product performance
- High‑strength carbon‑steel frame with anti‑rust treatment
- Medical‑grade corrosion‑resistant surface, easy to disinfect
- Impact‑resistant ABS components for durability
- 8000 N high‑thrust motor with smooth lifting speed 3.8 mm/s
- Ultra‑quiet operation <60 dB(A)
- 200 kg safe load‑bearing capacity
- Adjustable base width 600–850 mm; folded dimensions 950×560×370 mm
- Gross weight 41 kg; net weight 34 kg
Dimensions
- Base length: 950 mm
- Adjustable base width: 600–850 mm
- Base height (low profile): 110 mm
- Lifting speed: 3.8 mm/s
- Safe load capacity: 200 kg
- Gross weight: 41 kg
- Net weight: 34 kg
- Folded dimensions: 950×560×370 mm
- Package dimensions: 1050×640×350 mm
Application scenarios
- Optimized for hospitals, nursing homes and home care to assist sit‑to‑stand transfers, bed‑to‑chair movements and rehabilitation exercises while reducing caregiver physical strain
Specifications / Technical data
- Model: FGBP01F
- Frame material: high‑strength carbon steel with anti‑rust finish
- Surface: medical‑grade, corrosion‑resistant, easy to clean
- Components: ABS injection‑molded, impact‑resistant parts
- Motor thrust: 8000 N
- Lifting speed: 3.8 mm/s
- Noise level: <60 dB(A)
- Safe load capacity: 200 kg
- Base length: 950 mm
- Adjustable base width: 600–850 mm
- Base height: 110 mm
- Folded size: 950 × 560 × 370 mm
- Package dimensions: 1050 × 640 × 350 mm
- Gross weight: 41 kg; Net weight: 34 kg
- Casters: stainless steel, smooth and scratch‑free
- Power: AC 100–240 V universal voltage
