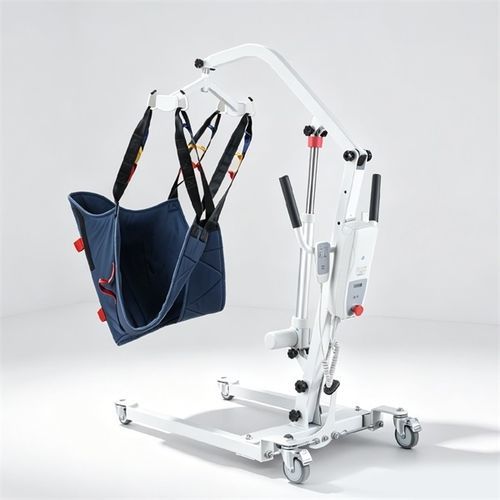

Electric patient floor lift FGBP05

battery-operatedon castersadult

Seeking global distributors. OEM & ODM services available.

Product Overview
FGBP05 electric patient lift for hospitals, nursing homes and home care. Enables safe transfers between floor level, beds, wheelchairs and bathrooms and supports bathing, toileting and postoperative handling with floor-level lifting capability.

Core Advantages

• High-strength alloy carbon steel frame with rust- and corrosion-resistant finish
• Two battery options: lead‑acid or lithium for operational flexibility
• ISO-compliant safety design with symmetrical anti‑ tipping chassis
• Powerful, ultra-quiet 8000 N motor with dual-controller operation
• Low-profile base and adjustable width for access in confined spaces

Product Performance

• Medical‑grade surface finish, easy to clean and suitable for frequent disinfection
• Safe load capacity: 230 kg, meeting clinical requirements
• 8000 N motor delivering smooth lifting at 3.8 mm/s
• Ultra-quiet operation
• Adjustable base width: 600–850 mm for narrow access
• Low base height: 110 mm enabling direct floor-level lifts
• Universal input: 100–240 V, 50–60 Hz; 3 m power cord for extended reach
• Stainless steel casters for smooth, scratch‑free mobility

Dimensions

• Base length: 1050 mm
• Adjustable base width: 600–850 mm
• Base height: 110 mm
• Lifting range: 350–1800 mm
• Sling off‑ground range: 0–1000 mm
• Motor thrust: 8000 N
• Power cord length: 3 m
• Safe load capacity: 230 kg
• Net weight: 40 kg
• Gross weight: 47 kg
• Package dimensions: 1100 × 670 × 380 mm

Application Scenarios
Optimized for hospitals, nursing homes and home care to perform safe transfers between beds, wheelchairs and bathrooms; suitable for bathing, toileting and postoperative transfers and for lifting immobilized users from floor level.

Technical specifications

• Model: FGBP05
• Frame material: High‑strength alloy carbon steel, rust‑ and corrosion‑resistant finish
• Surface: Medical‑grade, easy to clean
• Power options: Lead‑acid battery or lithium battery
• Motor thrust: 8000 N
• Lifting speed: 3.8 mm/s
• Noise level:
• Safe load capacity: 230 kg
• Adjustable base width: 600–850 mm
• Base length: 1050 mm
• Base height: 110 mm (low profile)
• Lifting range: 350–1800 mm
• Sling off‑ground range: 0–1000 mm
• Power input: 100–240 V, 50–60 Hz
• Power cord length: 3 m
• Net weight: 40 kg; Gross weight: 47 kg
• Package dimensions: 1100 × 670 × 380 mm
• Casters: Stainless steel
