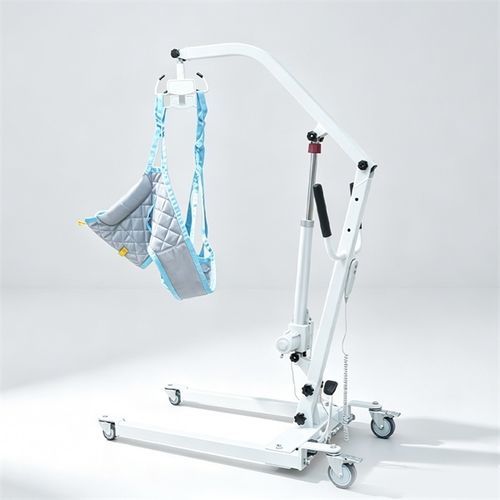

Electric patient lift FGPI06

on castersadultfor bathtub

Product overview
FGPI06 plug-in electric patient lift for controlled, safe transfers in hospitals, nursing homes and home care. Key built-in features include a high-strength alloy carbon steel frame with anti-corrosion finish, power-off automatic braking, 360° rotating lifting hook and 230 kg safe load capacity.

Core advantages

• High-strength alloy carbon steel frame with seamless anti-corrosion design
• Power-off automatic braking system compliant with medical safety requirements
• 360° rotating lifting hook for flexible patient positioning
• ABS injection-molded impact-resistant components
• Medical-grade, corrosion-resistant and easy-to-clean surfaces

Product performance

• 8000 N high-thrust motor with stable lifting speed of 3.8 mm/s
• Ultra-quiet motor operation (<65 dB(A))
• Power-off automatic brake to prevent descent during sudden outages
• Adjustable base width 600–850 mm for access in narrow spaces
• Multi-scenario use: toileting, bathing, patient transfer and rehabilitation walking
• Universal input voltage: 100–240 V, 50–60 Hz
• Stainless steel casters for smooth, scratch-free movement
• Symmetrical anti-tipping chassis design for enhanced stability

Dimensions

• Base length: 1050 mm
• Adjustable base width: 600–850 mm
• Base height: 110 mm
• Lifting range: 350–1800 mm
• Sling off-ground range: 0–1000 mm
• Motor thrust: 8000 N
• Power cord length: 3 m
• Safe load capacity: 230 kg
• Net weight: 37.5 kg
• Gross weight: 41 kg
• Package dimensions: 1100 × 670 × 380 mm

Application scenarios
Optimized for hospitals, nursing homes and domiciliary care. Facilitates safe transfers between beds, wheelchairs and bathrooms; supports toileting, bathing, postoperative transfers and rehabilitation with power-off safety braking.

Technical specifications

• Model: FGPI06
• Frame material: high-strength alloy carbon steel with anti-rust finish
• Components: ABS injection-molded impact-resistant parts
• Load capacity: 230 kg
• Motor thrust: 8000 N
• Lifting speed: 3.8 mm/s
• Motor noise: <65 dB(A)
• Input voltage: 100–240 V, 50–60 Hz
• Adjustable base width: 600–850 mm
• Base length: 1050 mm
• Base height: 110 mm
• Lifting range: 350–1800 mm
• Sling off-ground range: 0–1000 mm
• Power cord length: 3 m
• Casters: stainless steel
• Net weight: 37.5 kg
• Gross weight: 41 kg
• Package dimensions: 1100 × 670 × 380 mm
