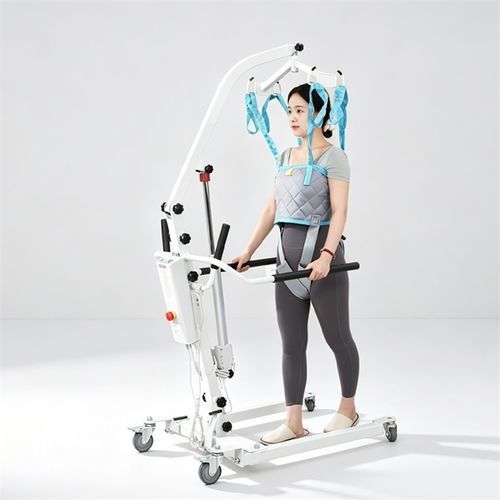

Electric patient lift FGBP03W

battery-operatedon castersportable

Product name
FGBP03W Electric walking patient lift

Core advantages:

• High-strength alloy carbon steel frame with anti-rust and corrosion-resistant finish
• 360° foldable and rotatable armrest (650 mm), height-adjustable
• Dual-control operation for flexible handling
• Dual-mode: patient transfer and walking rehabilitation support
• Meets applicable ISO safety standards

Product performance:

• Durable alloy frame designed for clinical environments
• Medical-grade, easy-to-clean surface suitable for frequent disinfection
• Dual-control system enabling multi-angle positioning during transfers and therapy
• 360° rotatable foldable armrest providing ergonomic patient support
• Safe load capacity 230 kg to satisfy clinical requirements
• 8000 N thrust motor with smooth lifting at 3.8 mm/s
• Ultra-quiet operation (<65 dB(A)) for patient areas
• Adjustable base width (560–850 mm) for access in narrow spaces
• Dual power options: lead-acid or lithium battery; universal input 100–240 V, 50–60 Hz
• 3 m power cord for extended reach
• Stainless steel casters for smooth, scratch-free mobility
• Symmetrical anti-tipping chassis design for enhanced stability during transfer and walking

Dimensions:

• Base length: 1050 mm
• Adjustable base width: 560–850 mm
• Base height: 110 mm
• Lifting range: 350–1950 mm
• Sling off-ground range: 0–1000 mm
• Handrail/armrest length: 650 mm
• Motor thrust: 8000 N
• Power cord length: 3 m
• Safe load-bearing capacity: 230 kg
• Net weight: 40 kg
• Gross weight: 47 kg
• Package dimensions: 1200 × 625 × 355 mm

Application scenarios:
Optimized for hospitals, nursing homes and home care. Supports safe transfers between beds, wheelchairs and bathrooms and provides walking-rehabilitation assistance for post-operative and daily care needs.

Specifications / Technical specifications:

• Model: FGBP03W
• Product type: Electric walking patient lift (dual mode: transfer & walking rehabilitation)
• Frame: High-strength alloy carbon steel with anti-rust and corrosion-resistant finish
• Surface: Medical-grade, easy to clean
• Armrest: 360° rotatable and foldable, length 650 mm, height adjustable
• Load capacity: 230 kg (safe load-bearing)
• Motor: 8000 N thrust, lifting speed 3.8 mm/s
• Noise level: <65 dB(A)
• Adjustable base width: 560–850 mm
• Base length: 1050 mm
• Base height: 110 mm
• Lifting range: 350–1950 mm
• Sling off-ground range: 0–1000 mm
• Power options: Lead-acid or lithium battery; input 100–240 V, 50–60 Hz
• Power cord length: 3 m
• Casters: Stainless steel
• Stability: Symmetrical anti-tipping chassis design
• Net weight: 40 kg; Gross weight: 47 kg; Package dimensions: 1200 × 625 × 355 mm
