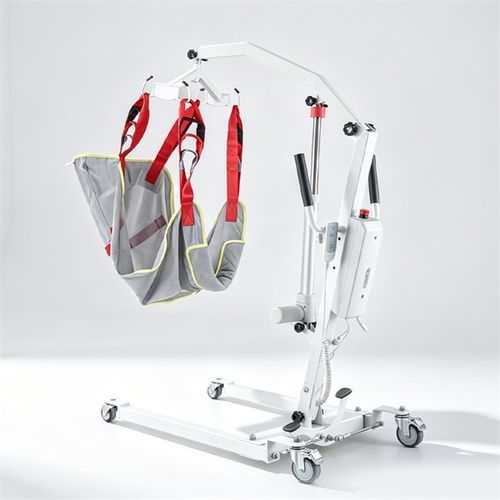

Electric patient lift FGBP04Fbattery-operatedon castersportable
Add to favorites
Compare this product
Characteristics
- Operation
- electric, battery-operated
- Configuration
- on casters, portable
- Patient type
- adult
- Applications
- wheelchair
- Options
- lifting, transportable, folding
- Material
- stainless steel
- Lifting capacity
230 kg
(507.1 lb)- Lifting height
Max.: 180 cm
(71 in)Min.: 35 cm
(14 in)- Base width
Max.: 85 cm
(33.5 in)Min.: 56 cm
(22 in)- Base length
105 cm
(41.3 in)- Weight
40 kg
(88.18 lb)
Description
Seeking global distributors. OEM & ODM services available.
Overview
Product Performance
Dimensions
Application Scenarios
Technical Specifications
Overview
- High-strength alloy carbon steel frame with anti-rust and corrosion-resistant finish; compact foldable design for storage and transport; dual power options (lead-acid or lithium battery); ISO-compliant safety features; compatible with over ten types of slings including rehabilitation walking slings.
Product Performance
- Medical-grade, easy-to-clean surface suitable for frequent disinfection
- 8000 N high-thrust motor with smooth lifting speed of 3.8 mm/s
- Ultra-quiet operation (
- Adjustable base width 560–850 mm for access in narrow spaces
- 230 kg safe load-bearing capacity meeting clinical safety requirements
- Universal input 100–240 V, 50–60 Hz and 3 m power cord for extended range
- Stainless steel casters for smooth, scratch-free mobility
- Symmetrical anti‑tipping chassis design for enhanced stability
Dimensions
- Base length: 1050 mm
- Adjustable base width: 560–850 mm
- Base height: 110 mm
- Lifting range: 350–1800 mm
- Sling off-ground range: 0–1000 mm
- Motor thrust: 8000 N
- Power cord length: 3 m
- Safe load-bearing capacity: 230 kg
- Net weight: 40 kg
- Gross weight: 47 kg
- Folded dimensions: 1050×560×300 mm
- Package dimensions: 1200×625×355 mm
Application Scenarios
- Designed for hospitals, nursing homes and home care. Facilitates safe transfers between beds, wheelchairs and toilets, and supports rehabilitation walking training with compatible slings.
Technical Specifications
- Model: FGBP04F
- Frame material: High-strength alloy carbon steel
- Finish: Anti-rust, corrosion-resistant
- Surface: Medical-grade, easy-to-clean
- Folded size: 1050×560×300 mm
- Base length: 1050 mm
- Adjustable base width: 560–850 mm
- Base height: 110 mm
- Lifting range: 350–1800 mm
- Sling off-ground range: 0–1000 mm
- Motor thrust: 8000 N
- Lifting speed: 3.8 mm/s
- Noise level:
- Safe load-bearing capacity: 230 kg
- Input voltage: 100–240 V, 50–60 Hz
- Power cord length: 3 m
- Battery options: Lead-acid or lithium
- Casters: Stainless steel
- Net weight: 40 kg
- Gross weight: 47 kg
- Package dimensions: 1200×625×355 mm
- Compatible slings: Over ten types (including rehabilitation walking slings)
