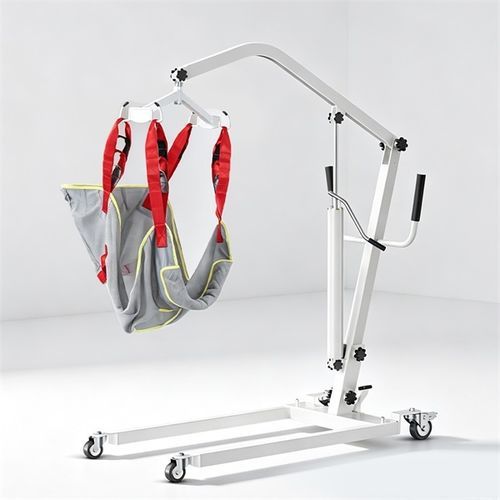

Manual patient lift FGM08H

hydraulicon castersadult

Product Name
Manual hydraulic patient lift FGM08H — manual operation, no power required

Core Advantages

• High-strength alloy carbon steel frame with medical-grade anti-corrosion finish
• Medical-grade corrosion-resistant, easy-to-clean surface
• Heavy-duty 1-ton silent hydraulic jack — manual operation without electricity
• Approx. 30 mm lift per pump stroke for smooth, controlled movement
• Adjustable base width 560–850 mm for access in narrow spaces
• Safe working load: 230 kg
• Compatible with over ten sling types for toileting, bathing and rehabilitation
• Optional auxiliary training armrest to support mobility exercises
• No power cord required; suitable for environments with limited or no electricity
• Lifting range: 350–1800 mm; sling height range: 0–1000 mm
• Stainless steel casters for smooth, non-marking movement
• Anti-tipping symmetrical chassis design for enhanced stability

Product Performance

• Frame: High-strength alloy carbon steel with anti-rust finish
• Surface: Medical-grade corrosion-resistant and easy-to-clean
• Hydraulic: Heavy-duty 1-ton silent hydraulic jack; manual operation
• Lifting precision: ~30 mm per plunger reciprocation for smooth, safe movement
• Base width adjustment: 560–850 mm to access narrow spaces
• Load-bearing: 230 kg safe capacity
• Sling compatibility: Compatible with multiple sling types for toileting, bathing and rehabilitation
• Optional accessories: Auxiliary training armrest for mobility support

Dimensions

• Base length: 1050 mm
• Adjustable base width: 560–850 mm
• Base height: 110 mm
• Lifting range: 350–1800 mm
• Sling off-ground range: 0–1000 mm
• Jack tonnage: 1 ton
• Safe load-bearing capacity: 230 kg
• Gross weight: 46 kg
• Net weight: 40 kg
• Package dimensions: 1100×670×380 mm

Application Scenarios
Designed for hospitals, nursing homes and home care with limited or no power access. Enables safe transfers between beds, wheelchairs and bathrooms and supports rehabilitation training when used with compatible slings.

Technical Specifications

• Model: FGM08H
• Frame material: High-strength alloy carbon steel with anti-rust finish
• Hydraulic jack: Heavy-duty 1-ton silent hydraulic jack (manual operation)
• Adjustable base width: 560–850 mm
• Lifting control: Approx. 30 mm per plunger reciprocation
• Maximum safe load: 230 kg
• Lifting range: 350–1800 mm
• Sling height range: 0–1000 mm
• Casters: Stainless steel for smooth, non-marking movement
• Weight (net/gross): 40 kg / 46 kg
• Package size: 1100×670×380 mm
