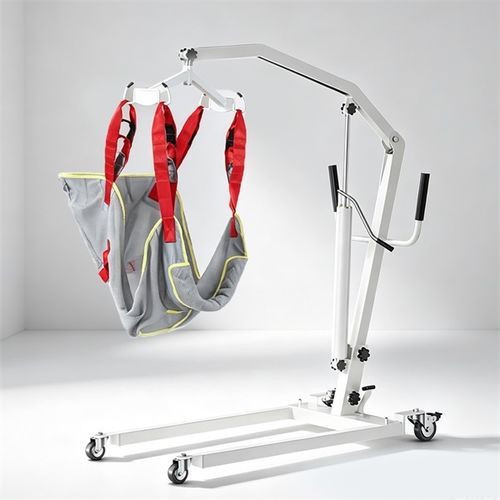

Manual patient lift FGM07F

hydraulicon castersportable

Product Overview
The FGM07F is a manual foldable patient lift with a manual hydraulic lifting system designed for safe patient transfers between beds, wheelchairs and bathrooms where electrical power is limited. The compact foldable base and transport-friendly design support multi-site and mobile care use.

Key features

• High-strength alloy carbon steel frame with anti-corrosion finish
• Manual hydraulic operation (1-ton jack) for power-free lifting
• Adjustable base width (560–850 mm) for narrow-space access
• Foldable base and compact folded dimensions for easy transport and storage
• Stainless steel casters and anti-tipping symmetrical chassis

Performance and operation

• Manual hydraulic lifting mechanism with 3 cm lift per plunger stroke for controlled movement
• Safe working load: 230 kg
• Lifting range: 350–1800 mm; sling height range: 0–1000 mm
• ABS injection-molded, impact-resistant connectors and medical-grade corrosion-resistant surface for easy cleaning
• Smooth, scratch-free stainless steel casters for maneuverability

Dimensions

• Base length: 1050 mm
• Adjustable base width: 560–850 mm
• Base height: 110 mm
• Lifting range: 350–1800 mm
• Sling off-ground range: 0–1000 mm
• Folded size: 1050 × 560 × 300 mm
• Gross weight: 46 kg; Net weight: 40 kg
• Package dimensions: 1100 × 670 × 300 mm

Applications
Optimized for hospitals, nursing homes and home care environments with limited power access. Suitable for mobile care teams and multi-room use to securely transfer patients between bed, wheelchair and bathroom.

Technical specifications

• Model: FGM07F
• Frame material: High-strength alloy carbon steel with anti-rust finish
• Surface: Medical-grade corrosion-resistant, easy to clean
• Connectors: ABS injection-molded, impact-resistant
• Lifting mechanism: Manual hydraulic (1-ton jack)
• Lifting increment: 3 cm per plunger stroke
• Adjustable base width: 560–850 mm
• Safe load capacity: 230 kg
• Lifting range: 350–1800 mm; Sling height range: 0–1000 mm
• Folded dimensions: 1050 × 560 × 300 mm; Package: 1100 × 670 × 300 mm
• Gross weight: 46 kg; Net weight: 40 kg
• Casters: Stainless steel, smooth and scratch-free
