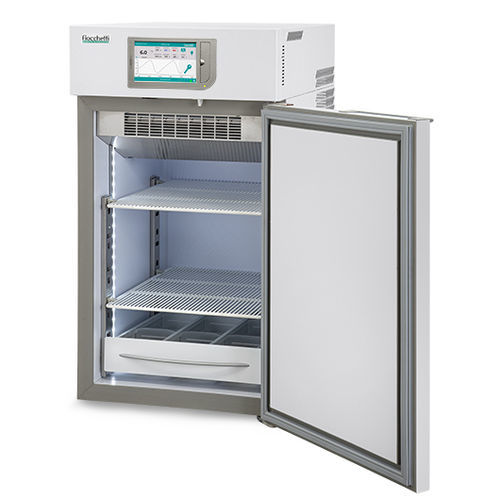

Medical freezer PLASMA-FREEZER 140 TOUCH

for blood plasmafor laboratorycompact

Overview
Compact medical freezer designed for short-term storage of frozen plasma and blood products at -10 / -20°C. Medical device (Directive 93/42/EEC, class IIa) equipped with a touchscreen controller and event logging.

Key features

• Model: PLASMA-FREEZER 140 TOUCH — nominal 140 L; panel capacity 153 L; net 128 L
• Temperature range: -10 / -20°C
• External dimensions (WxDxH): 52 x 63.5 x 94 cm; Internal dimensions: 44 x 51.6 x 56 cm
• 7" full touch screen controller with data and alarms recording; DMLP independent recorder with backup battery
• Connectivity: SD, USB, SIM slot (GSM optional), RJ45, integrated Web Server and MODBUS TCP/IP
• Refrigerant: R290; ventilated refrigeration; adaptive automatic defrost

Controller — 7" Full Touch Screen

• Resolution 0.1°C; accuracy ±0.3°C; temperature and alarm logging with timestamped events
• Multi-trace real-time graph; simultaneous display of current temperature and editable set-point; editable alarm limits; energy consumption and battery status
• Ports: SD card slot, USB port, SIM slot; dry contact for remote alarm; external terminal board
• Access control: optional electric digital lock with generic or dedicated password
• Independent backup: DMLP TOUCH module records temperature and alarms during power failure (backup battery)
• Upgradable: GSM and Wi‑Fi modules; compatible with local or cloud monitoring systems
• Alarms: acoustic and visual alarms (silenceable); events recorded with date/time/type/duration/highest temperature

Structure and refrigeration

• Monocoque structure; white plastified atoxic steel with antibacterial film or optional AISI 304 stainless steel interior
• PUF injected insulation, density 43 kg/m3, water-foam based injection, CFC-free; insulation thickness 40 mm
• Inner bottom with rounded corners; full-height adjustable LED interior lighting
• Mobility / support: 4 unidirectional rollers included and 2 front feet for stability
• Energy saving: Night & Day function for reduced power consumption

Technical data

• Refrigerant gas: R290
• Energy consumption: 3.7 kWh/24h
• Power absorption / current: 0.5 kW / 2.3 A — Inrush current: 6 A
• Noise level: 40 dBA — Heat rejection (EN 12900): 155 W
• Shelves: max 3 — included 2 (wire shelf size 40 x 49 cm)
• Drawers: max 3 — drawer internal dims with dividers and without as per specification

Accessories (on request)

• Gateway IoT, GSM and Wi‑Fi modules, DMLP TOUCH module
• Local monitoring system (FIOCCHETTI LAN SUPERVISOR), digital electric key, PT100 probe, 4-20mA converter
• Aluminium pull-out drawers (with/without dividers), plexiglass fronts, wheel kits, access ports, voltage stabiliser, wooden crate packaging

Compliance and use
Certified as Medical Device (Directive 93/42/EEC class IIa) and registered in the Italian Ministry of Health MD Repertoire; RoHS compliant (2011/65/CE). Intended for storage of frozen plasma bags and blood products in laboratories and transfusion departments with configurable internal fittings.

Specifications

• Model / commercial name: PLASMA-FREEZER 140 TOUCH — Code DMF0142
• Temperature range: -10 / -20°C — Nominal capacity: 140 L; Net capacity: 128 L; Panel capacity: 153 L
• External (WxDxH) 52 x 63.5 x 94 cm — Internal 44 x 51.6 x 56 cm
• Insulation: injected PUF 43 kg/m3, thickness 40 mm — Structure and lighting as described above
• Controller: 7" full touch, 0.1°C resolution, ±0.3°C accuracy; SD/USB/SIM slots; RJ45; Web Server; MODBUS TCP/IP; independent recorder option
