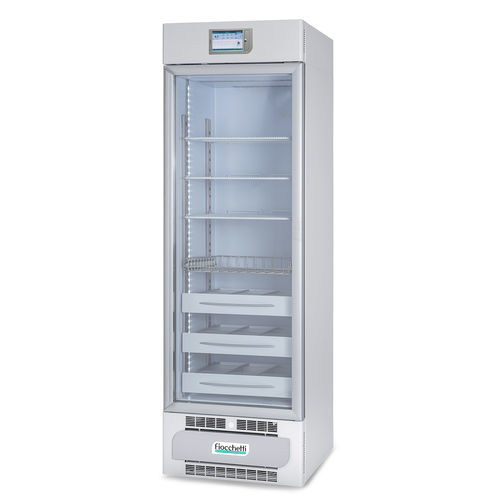

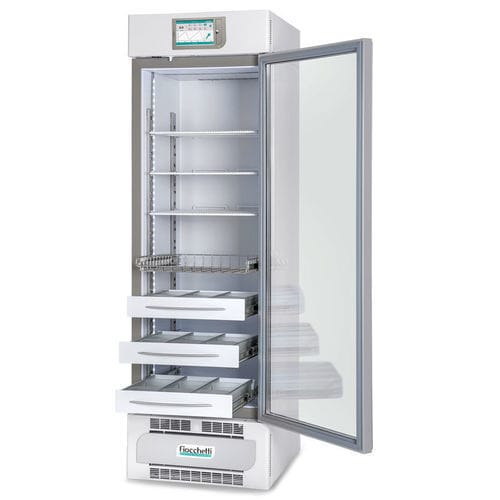

Medical freezer PLASMA-VISION 400 TOUCH

for laboratoryfor blood plasmablood bank

Overview
Medium-size medical freezer for short-term storage of frozen plasma and blood products down to -20°C. Certified as a medical device (code DMV0402) and equipped with a 7" full touch electronic controller for data logging, alarms and network monitoring. Brand: Fiocchetti.

Highlights

• Temperature range: -10 / -20°C
• Nominal capacity: 400 L — Net capacity: 347 L
• External dimensions (WxDxH): 60 x 67 x 196 cm
• Controller: TOUCH 7" full touch screen; SD/USB/SIM slots; RJ45 and MODBUS TCP/IP

Certified product and compliance
PLASMA-VISION units are registered as Medical Devices (Directive 93/42/EEC — class IIa and amendment 2007/47/EEC) and comply with RoHS 2011/65/CE. Standard features include event logging, alarm management, backup battery for recordings during power failures, external dry contacts for remote alarm and LAN connectivity.

Structure and refrigeration
Monocoque structure with interior/exterior in white plastified steel with antibacterial film or optional AISI 304 18/10 stainless steel interior. Inner dimensions: 50 x 49 x 140 cm. Insulation: injected PUF 43 kg/m3 (70 mm back / 50 mm sides), water-based injection, CFC-free. Professional forced-air refrigeration with adaptive automatic defrost and condensate evaporation. Mobility: 4 unidirectional rollers + 2 front feet. Interior full-height LED lighting with adjustable brightness.

Controller (7" FULL TOUCH SCREEN)
Microprocessor controller, 0.1°C resolution, ±0.3°C accuracy. Features: temperature and alarm recording, multi-trace real-time graph, editable set-point and alarm limits, energy consumption and battery status. Interfaces: SD card slot (history), USB (download/update), SIM slot (GSM optional), RJ45 (LAN) and MODBUS TCP/IP. Dry contact for remote alarm. Optional: GSM/Wi‑Fi modules, electric digital lock, DMLP TOUCH independent recorder (with backup battery), product temperature simulation probe. Acoustic and visual alarms with event automatic logging (date, time, type, duration, max temp).

Refrigerator technical data

• Refrigerant: R290
• Energy consumption: 5 kWh/24h
• Power absorption / current: 0.32 kW / 2.3 A
• Inrush current: 5 A
• Noise level: <45 dBA
• Heat rejection (EN 12900): 187 W
• Shelves included: 3 (max 5); wire shelf size: 46 x 45 cm
• Max drawers: 6; drawer dims with dividers: 11.8 x 40 x 7.5 cm (per compartment)

Accessories available on request

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR monitoring system
• GSM module
• Wi‑Fi module
• 4-20 mA module
• Shelves and drawers for models 170/200/250/400
• PT100 probe
• Voltage stabilizer and transport cage

Technical specifications

• Model: PLASMA-VISION 400 TOUCH
• Brand: Fiocchetti
• Code: DMV0402
• Temperature range: -10 / -20°C
• Nominal capacity: 400 L — Net capacity: 347 L
• External dims (WxDxH): 60 x 67 x 196 cm; Inner dims: 50 x 49 x 140 cm
• Insulation: PUF injected 43 kg/m3; thickness 70 mm (back) / 50 mm (sides)
• Refrigeration: professional ventilated; defrost: automatic adaptive
• Controller: 7" full touch; resolution 0.1°C; accuracy ±0.3°C; SD/USB/SIM; RJ45; MODBUS TCP/IP
• Compliance: Medical Device (Directive 93/42/EEC class IIa) ; RoHS 2011/65/CE
