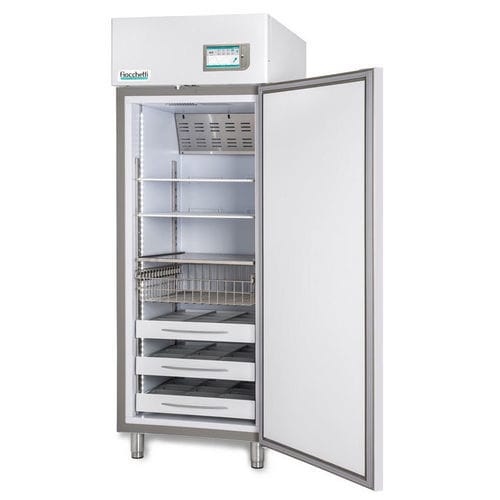

Blood bank freezer PLASMA-FREEZER 700 TOUCH

laboratorymedicalfor blood plasma

Summary
Column-type medical freezer for short-term storage of frozen plasma and blood products down to -25°C. Model PLASMA-FREEZER 700 TOUCH (code DMF0702) with 7" full touch controller and data/alarm recording suitable for laboratories and transfusion departments.

Key data

• Temperature range: -10 / -25°C
• Nominal capacity: 700 L — Net capacity: 620 L (21.89 cu ft)
• External dimensions (WxDxH): 75 x 85.5 x 210 cm
• Controller: 7" FULL TOUCH SCREEN (resolution 0.1°C, accuracy ±0.3°C)

Certifications and compliance
Certified as a medical device (Directive 93/42/EEC class IIa and amendment 2007/47/EEC), registered in the Italian Ministry of Health MD Repertoire and compliant with RoHS 2011/65/CE. Designed for handling frozen plasma and blood products with documented temperature and alarm traceability.

Structure and refrigeration

• Inner dimensions: 60 x 68 x 150 cm
• Insulation: injected PUF 43 kg/m3, water-foam injection, CFC-free; thickness 75 mm
• Structure: monocoque; plasticized atoxic white steel interior/exterior with antibacterial film or inner AISI 304 18/10 stainless steel; rounded inner corners
• Refrigeration: professional ventilated system; defrost automatic adaptive with condensate vaporization
• Lighting: full-height adjustable LED

7" FULL TOUCH SCREEN CONTROLLER
Microprocessor controller with multi-trace real-time graph, temperature and alarm recording (SD/USB), editable setpoint and alarm limits, energy consumption and battery status. Includes SD slots, USB port, SIM slot (for optional GSM), integrated web server (LAN RJ45) and MODBUS TCP/IP. Dry contact for remote alarm output and buffer batteries to preserve records during power failure.

Technical data

• Refrigerant: R290
• Energy consumption: 5 kWh/24h
• Power absorption: 0.35 kW / 2.5 A; Inrush current: 7 A
• Noise level: 55 dBA
• Heat rejection EN12900: 208 W
• Shelves included: 3 (max 7); wire shelf size: 56 x 65 cm
• Drawers/wire racks: configurable up to 7 drawers or multiple wire racks

Accessories and expandability

• Optional GSM module, Wi‑Fi module, Gateway IOT
• Local monitoring (Fiocchetti LAN Supervisor) and cloud supervision
• Shelves, pull-out aluminium drawers with/without dividers, plexiglass fronts, stainless steel racks and baskets, wheels kit, PT100 probe, voltage stabiliser

Specifications

• Model code: DMF0702
• Denomination: PLASMA-FREEZER 700 TOUCH
• Temperature range: -10 / -25°C
• Nominal capacity: 700 L — Net capacity: 620 L
• Inner dims: 60 x 68 x 150 cm; External dims: 75 x 85.5 x 210 cm
