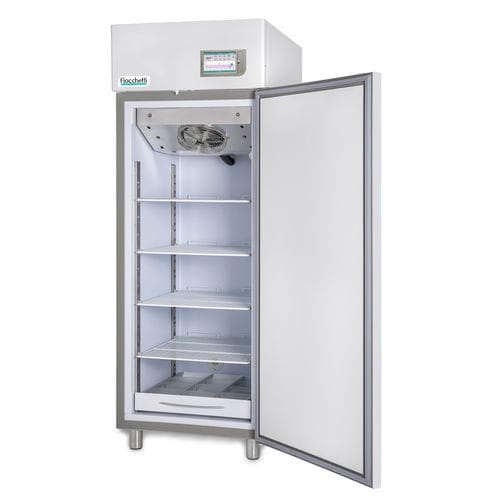

Medical freezer PLASMA-SUPERARTIC 700 TOUCH

for blood plasmaon castersupright

Overview
The PLASMA-SUPERARTIC 700 TOUCH is a medical-grade plasma freezer designed for the frozen storage of plasma and blood derivatives. Operative range reported: -30 / -40°C (page also indicates -20°C to -40°C). Solid door, optional stainless-steel inner lining, integrated data recording and certified as a Medical Device.

Regulatory compliance
Certified as a Medical Device (Directive 93/42/EEC, class IIa, amendment 2007/47/EEC). Registered in the Italian Ministry of Health MD Repertoire. Compliant with DIN 13277 and 2011/65/CE (RoHS).

Key features

• Temperature range: -30 / -40°C (page references also -20°C to -40°C)
• Nominal capacity: 700 L; visible/cited capacity on page: 620 L; net capacity: 544 L
• External dimensions (WxDxH): 75 x 88 x 208.5 cm; inner dimensions: 60 x 68.6 x 130 cm
• Solid door with increased insulation thickness (PUF 43 kg/m3, 75 mm)
• Professional ventilated refrigeration with R290 refrigerant
• Automatic adaptive defrost with condensate collection and automatic evaporation

Controller and monitoring

• 7" FULL TOUCH SCREEN microprocessor controller: 0.1°C resolution, ±0.3°C accuracy
• Temperature and alarm recording with multi-trace real-time graph; editable set-point and alarm limits
• Data ports: SD card, USB, SIM slot (for optional GSM); integrated Web Server (RJ45); MODBUS TCP/IP; dry contact for remote alarm
• DMLP TOUCH independent module with backup battery for recording during power failure; product temperature simulation probe; optional electric digital lock
• Acoustic and visual alarms with buffer battery; events logged with date/time/type/duration/highest temperature

Structure and refrigeration

• Monocoque construction; white plastified steel with antibacterial film or inner 18/10 AISI 304 stainless steel
• Insulation: high-density injected polyurethane (43 kg/m3), water-based, CFC-free; 75 mm thickness
• Nominal capacity 700 L; net capacity 544 L; shelves included: 3 (max 7); adjustable feet (4)
• Power reduction via Night & Day function

Technical data (highlights)
Refrigerant: R290
Energy consumption: 10 kWh/24h
Power absorption/current: 2 kW / 9.1 A (inrush 7 A)
Noise level: <60 dBA
Heat rejection (EN 12900): 416 W
Shelves dimensions (wire): 56 x 65 cm; various drawer and basket configurations available

Accessories (on request)

• IoT Gateway, GSM / Wi‑Fi modules
• FIOCCHETTI LAN SUPERVISOR local monitoring
• 4-20 mA converter, SD/USB/SIM options, stainless-steel racks and drawers, plexiglass fronts
• Wheels kit, access ports (Ø35 mm, Ø15 mm), PT100 probe, trays for condensate evaporation
• Voltage options: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser; wooden crate packaging

Specifications

• Model: PLASMA-SUPERARTIC 700 TOUCH (code DMS0702)
• Use: frozen storage of plasma and blood derivatives (Medical Device, class IIa)
• Temperature range (page): -30 / -40°C (also indicated -20 / -40°C)
• Capacities: nominal 700 L / net 544 L / displayed 620 L
• Controller: 7" full touch, SD/USB/SIM, RJ45 Web Server, MODBUS TCP/IP, DMLP TOUCH module
