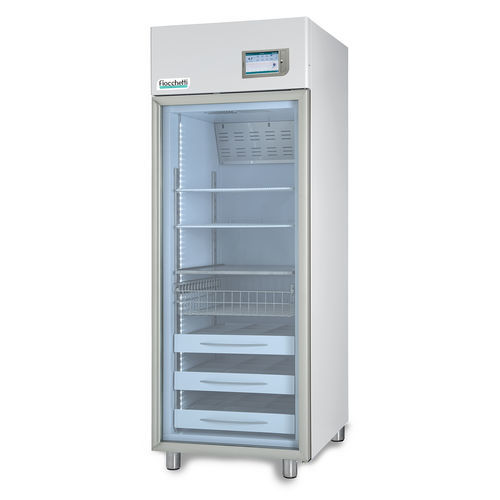

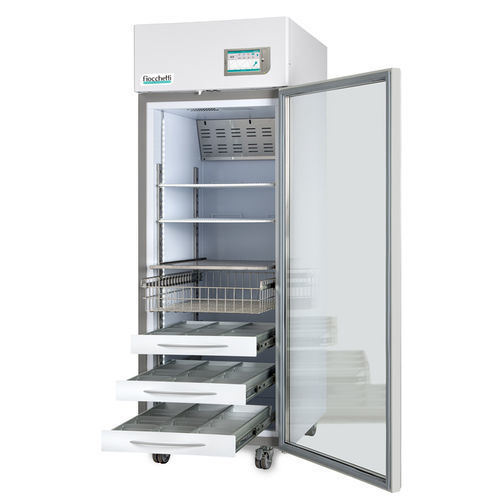

Laboratory freezer PLASMA-VISION 700 TOUCH

for blood plasmablood bankvertical

Product overview
Medical large-volume freezer for short-term storage of plasma and blood products at -10 / -20°C. Certified as a medical device (Directive 93/42/EEC class IIa) and registered in the Italian Ministry of Health MD Repertoire. Model code DMV0702.

Intended use & compliance
Designed to store frozen plasma bags and blood derivatives for laboratories and transfusion services. Complies with 2011/65/CE (RoHS) and applicable medical device requirements.

Key features

• Temperature range: -10 / -20°C (configurable)
• Net capacity: 620 L; nominal capacity: 700 L
• External dimensions: 75 x 87 x 210 cm
• 7" FULL TOUCH SCREEN (TOUCH) controller with recording and DMLP TOUCH backup module
• Adaptive automatic defrost and Night & Day energy saving

Structure and refrigeration

• Monocoque structure; inner/outer white plastified steel with antibacterial film or inner AISI 304 stainless steel
• PUF injected insulation 43 kg/m3, 75 mm thickness
• Professional forced-air refrigeration; refrigerant: R290
• Interior full-height LED lighting with adjustable brightness; 4 height-adjustable feet

Controller and monitoring

• 7" full touch microprocessor controller, 0.1°C resolution, ±0.3°C accuracy
• Records temperatures and alarms; multi-trace real-time graph; SD/USB/SIM slots for data and updates
• Integrated Web Server, LAN (RJ45) and MODBUS TCP/IP; dry contact for remote alarm and external control
• DMLP TOUCH independent recorder with backup battery; acoustic and visual alarms buffered by batteries
• Upgradeable with GSM, Wi‑Fi and local or cloud monitoring systems

Technical data

• Refrigerant: R290
• Energy consumption: 6 kWh/24h
• Power absorption: 0.35 kW / 2.5 A; Inrush current: 7 A
• Noise level: <55 dBA
• Shelves included: 3 (max 7); wire shelf size: 56 x 65 cm
• Max drawers: 7; drawer dimensions and divider options per technical data

Accessories

• Gateway IoT, GSM and Wi‑Fi modules, FIOCCHETTI LAN SUPERVISOR
• Shelves, stainless steel wire racks, pull-out aluminium drawers (with/without dividers), plexiglass fronts
• PT100 probe, external terminal board, 4-20mA module, wheels kit, access ports, voltage options and wooden crate packaging

Technical specifications

• Manufacturer: Fiocchetti
• Model: PLASMA-VISION 700 TOUCH
• Product code: DMV0702
• Temperature range: -10 / -20°C
• Net capacity: 620 L; Nominal capacity: 700 L
• External dimensions (WxDxH): 75 x 87 x 210 cm; Inner dimensions: 60 x 68 x 150 cm
• Insulation: PUF 43 kg/m3, thickness 75 mm; Refrigerant: R290
• Controller: 7" full touch screen with SD/USB/SIM, RJ45, MODBUS TCP/IP; DMLP TOUCH backup module
