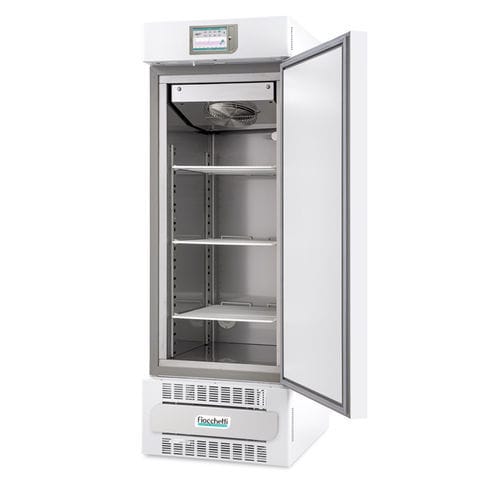

Blood bank freezer PLASMA-SUPERARTIC 400 TOUCH

for blood plasmaon castersvertical

Product overview
Medium-size plasma freezer for frozen storage of plasma and blood-derived products. Operating range nominally from -30°C to -40°C (storage range indicated -20°C to -40°C). Solid door, AISI 304 stainless steel interior, high-density injected polyurethane insulation and certified as a Medical Device. Integrated data and alarm recording with independent backup module for uninterrupted logging.

Highlights

• Certified plasma freezer down to -40°C
• Solid door with reinforced insulation to limit ice formation
• 7" full touch controller with multi-trace graphing and full data/alarm recording
• DMLP TOUCH module for independent backup recording during power loss
• Remote connectivity: RJ45 (LAN) with integrated web server and MODBUS TCP/IP; GSM and Wi‑Fi optional
• Electric digital lock option and dry contact for remote alarm integration
• Adaptive automatic defrost with condensate vaporization and Night & Day energy-saving function

Structure and refrigeration

• Inner dimensions: 51 x 61 x 125.5 cm
• Nominal capacity: 400 L; net capacity: 360 L; alternative listed capacity: 384 L
• External dimensions (WxDxH): 67 x 81 x 194 cm
• Insulation: injected PUF, density 43 kg/m3, water‑based injection, CFC-free
• Insulation thickness: 70 mm (rear) / 50 mm (sides)
• Structure: monocoque; interior 18/10 AISI 304 stainless steel; exterior white plastified steel with antibacterial film; rounded inner corners
• Mobility/stability: 4 unidirectional rollers included + 2 front feet
• Refrigeration: professional forced-air ventilation
• Defrost: automatic adaptive defrost with condensate vaporization

Controller
Microprocessor controller with 7" full touch screen, 0.1°C resolution and ±0.3°C accuracy. Standard features: temperature and alarm recording with multi-trace real-time graph, editable set-point and alarm limits, energy consumption and battery status. Slots for SD card (data history), USB port (download/update) and SIM slot (optional GSM). Integrated web server (LAN RJ45) and MODBUS TCP/IP. Anti-freeze and anti-overheat protections; dry contact for remote alarm. Optional electric digital lock with password management. DMLP TOUCH provides independent recording of temperatures and alarms (including during power failure). Product temperature simulation probe included. Acoustic and visual alarms with buffer batteries; events recorded with date/time/type/duration/highest temperature.

Technical data

• Refrigerant: R290
• Energy consumption: 7.5 kWh/24h
• Power absorption / current: 2 kW / 8.3 A
• Inrush current: 3 A
• Noise level: <55 dBA
• Heat rejection (EN 12900): 315 W
• Shelves included: 3 (max 6); wire shelf size: 60 x 47 cm
• Drawers max: 6; drawer with dividers (each compartment): 12 x 40 x 7.5 cm (3)

Compliance and certification
Certified as a Medical Device in compliance with Directive 93/42/EEC (class IIa) and amendment 2007/47/EEC; registered in the Italian Ministry of Health Medical Device Repertoire. Also compliant with DIN 13277 and 2011/65/CE (RoHS).

Product code and specifications

• Product code: DMS0402
• Model: PLASMA-SUPERARTIC 400 TOUCH
• Operating storage range: from -20°C to -40°C (product listing) / managed range -30/-40°C
• Options: DMLP TOUCH, GSM/Wi‑Fi modules, electric locks, LAN Supervisor gateway, additional shelves and drawers, PT100 probe, different voltages and packaging options
