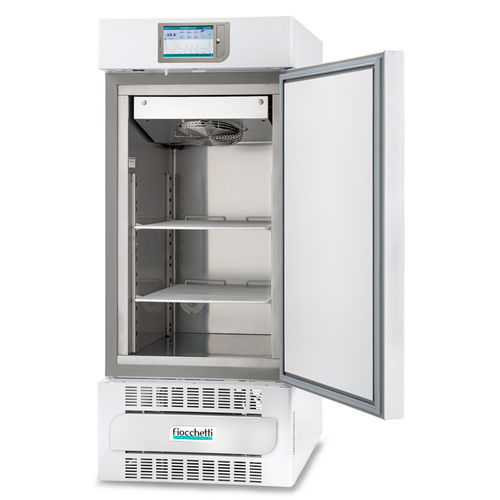

Blood bank freezer PLASMA-SUPERARTIC 250 TOUCH

for blood plasmauprightmobile

Overview
The PLASMA-SUPERARTIC 250 TOUCH by Fiocchetti is a certified plasma/blood products freezer designed for storage from −20°C to −40°C (product literature highlights −30 / −40°C). Solid door, reinforced insulation and stainless steel interior. Medical Device (Directive 93/42/EEC class IIa).

Key features

• 7" full touchscreen controller (TOUCH) with 0.1°C resolution and ±0.3°C accuracy
• Independent DMLP TOUCH module for redundant recording and alarms with backup battery (records during power failure)
• Temperature and alarm logging, multi-trace real-time graph, editable set‑point and alarm limits
• Data ports: SD slot (history), USB (download/update), SIM slot (optional GSM)
• Connectivity: integrated Web Server (LAN RJ45), MODBUS TCP/IP, dry contact for remote alarm
• Electric digital lock option for controlled access
• Adaptive automatic defrost with condensate vaporization to reduce ice formation
• Acoustic and visual alarms with buffer batteries; events recorded with date/time/type/duration/max temperature

Structure and refrigeration
Internal dimensions: 51 x 61 x 91.5 cm · Nominal/net capacity: 250 L (alternate page value: 280 L) · Insulation: injected PUF 43 kg/m3, 80 mm thickness, water‑based, CFC‑free · Structure: monocoque; interior AISI 304 18/10 stainless steel; exterior white plastified steel with antibacterial film · Refrigeration: professional ventilated · Defrost: automatic adaptive with condensate evaporation · Mobility: 4 unidirectional rollers + 2 front feet · Energy saving: Night & Day function.

Controller

• 7" FULL TOUCH microprocessor controller showing dynamic values, multi‑trace graph, current temperature, set‑point and alarm limits
• Standard temperature and alarm recording; SD/USB/SIM slots
• Integrated Web Server (LAN), MODBUS TCP/IP, dry contact for remote alarm
• Optional GSM/Wi‑Fi and cloud/local supervision; PT100 probe and external terminal board supported

Technical data
Refrigerant: R290 · Energy consumption: 6 kWh/24h · Power absorption: 2 kW / 8.3 A · Inrush current: 3 A · Noise: <55 dBA · Heat rejection EN 12900: 250 W · Shelves included: 2 (max 4) · Wire shelf size: 60 x 47 cm · Drawers max: 4 · Drawer inner compartments with dividers: 12 x 40 x 7.5 cm (per compartment) · External dims (WxDxH): 67 x 81 x 159 cm.

Accessories (on request)

• Gateway IOT
• Fiocchetti LAN SUPERVISOR local monitoring
• External terminal board for ECT‑F TOUCH
• GSM module, Wi‑Fi module
• 4‑20 mA converter, shelves and aluminium pull‑out drawers for SUPERARTIC 250‑400
• Plexiglass fronts for drawers, stainless wire racks, wheels kit, access ports, PT100 probe, voltage stabiliser, wooden crate packaging

Certifications & specifications

• Model code: DMS0252 · Model: PLASMA-SUPERARTIC 250 TOUCH (Fiocchetti)
• Medical Device: Directive 93/42/EEC (class IIa), amendment 2007/47/EEC; registered in Italian Ministry of Health MD Repertoire
• Compliance: DIN 13277, 2011/65/CE (RoHS)
