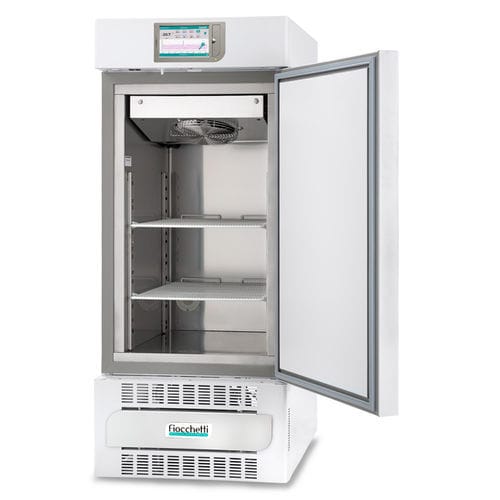

Laboratory freezer SUPERARTIC 250 TOUCH

medicalcabineton casters

Overview
Low-temperature laboratory freezer for storage at -20°C / -40°C. Solid door, medium size cabinet with stainless steel interior, equipped with a 7" full-touch electronic controller and data recording. Certified as Medical Device Risk Class I (Fiocchetti).

Key information

• Code: SUA0252
• Temperature range: -20 / -40°C
• Nominal / net capacity: 250 L (alternate 280 L shown in hero section)
• Controller: TOUCH 7" full touch screen

Structure and refrigeration
Inner dimensions: 51 x 61 x 91.5 cm
Insulation: injected PUF, 43 kg/m3, water-foam based, CFC-free; thickness 80 mm
Structure: monocoque; interior in 18/10 AISI 304 stainless steel; exterior in plasticized white steel with antibacterial-type film; rounded inner corners
Mobility/support: 4 unidirectional rollers included and 2 front feet for stability
Refrigeration: professional ventilated system
Defrost: automatic adaptive with vaporization/automatic evaporation of condensate
Energy saving: Night & Day function

Controller (7" full touch screen)
Microprocessor controller with 7" full touch interface; resolution 0.1°C, accuracy ±0.3°C
Standard functions: temperature and alarm recording; multi-trace real-time graph; current temperature and editable set-point; editable alarm limits; energy consumption and battery status (optional)
Data ports: SD card slot (history), USB port (download/update), SIM slot (for optional GSM module)
Connectivity: integrated Web Server for LAN (RJ45), MODBUS TCP/IP; dry contact for remote alarm
Safety and alarms: anti-freeze and anti-overheating devices; acoustic and visual alarms (silenceable) with automatic recording
Optional modules/accessories for controller: electronic lock; power-failure alarm; DMLP TOUCH independent recorder; GSM and Wi‑Fi modules; external terminal board; local and cloud monitoring systems

Technical data
Refrigerant: R290
Energy consumption: 6 kWh/24h
Power absorption / current: 2 kW / 8.3 A (page value)
Inrush current: 3 A
Noise level: <55 dBA
Heat rejection (EN 12900): 250 W
Shelves max: 4 (wire shelf dim. 47 x 60 cm)
Drawers max: 4 (with dividers: compartments 12 x 55 x 7.5 cm; without dividers: 39 x 55 x 7.5 cm)

Accessories available on request

• Gateway IOT
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Power failure alarm kit
• External terminal board for ECT-F TOUCH
• Digital electric key
• DMLP TOUCH digital monitor
• Temperature product simulation
• DIN 13277 conformity (for ECT-F TOUCH)
• GSM module
• Wi‑Fi module
• 4-20 mA converter module
• Shelf for models SUPERARTIC 250-400
• Stainless steel wire rack 14 x 42 x 15 cm (max. 3 per shelf)
• Pull-out aluminum drawer with dividers for models SA (250-400)
• Pull-out aluminum drawer without dividers for models SA (250-400)
• Plexiglass front for drawers
• Wheels kit (2 with brakes) for mod. 170-200-250-400
• Access port Ø 35 mm with stopper
• Port hole Ø 15 mm
• PT100 probe (free contacts)
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Wooden crate packaging

Technical specifications

• Model designation: SUPERARTIC 250 TOUCH
• Brand: Fiocchetti
• Product code: SUA0252
• Temperature range: -20 / -40°C
• Controller: 7" FULL TOUCH SCREEN microprocessor (0.1°C resolution, ±0.3°C accuracy)
• Refrigerant: R290
• Energy consumption: 6 kWh/24h
• Power absorption / current: 2 kW / 8.3 A
• Inrush current: 3 A
• Noise level: <55 dBA
• Reported capacity: 250 L (technical); alternate 280 L shown in hero
• Inner dimensions: 51 x 61 x 91.5 cm
• Insulation: injected PUF 43 kg/m3, thickness 80 mm
• Interior material: 18/10 AISI 304 stainless steel
• Exterior finish: plasticized white steel with antibacterial-type film
• Refrigeration: professional ventilated; adaptive automatic defrost with condensate evaporation
• Mobility: 4 unidirectional rollers + 2 front feet
• Classification: Medical Device Class I
