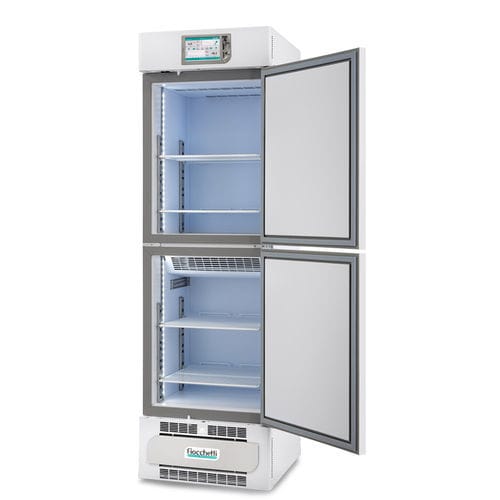

Vaccine refrigerator LABOR 2T 400 TOUCH

for hospitalsblood banklaboratory

Overview
Combined refrigerator + freezer for medical and laboratory use. Total nominal capacity 400 L (200+200) with two independent cooling units and two solid doors. Designed for storage of drugs, vaccines and thermosensitive material at positive temperatures and down to -25°C. Central TOUCH interface controls both chambers and records temperature and alarms.

Key data

• Temperature range: +2/+15°C (positive chamber) | -10/-25°C (negative chamber)
• Nominal capacity: 200 + 200 L — total 400 L
• Displayed/gross capacity on product sheet: 358 L
• External dimensions (WxDxH): 60 x 64.5 x 202 cm
• Electronic controller: TOUCH 7" full touch screen; resolution 0.1°C, accuracy ±0.3°C

Main functional features

• Two independent compartments with double cooling units for separate temperature storage and redundancy.
• Two solid doors with integrated handle, full‑perimeter magnetic gasket, automatic lock, return spring and reversible opening; door stop at 90°.
• Adaptive automatic defrost with evaporation of condensate to prevent ice and reduce downtime.
• Professional forced‑air (ventilated) refrigeration; refrigerant R290.
• Energy saving Night & Day function and low daily consumption (4 kWh/24h).
• Full‑height adjustable LED interior lighting and configurable internal fittings (shelves, drawers, baskets).
• Mobility: 4 unidirectional rollers and 2 front feet for stable installation and easy handling.

Electronic controller (7" FULL TOUCH SCREEN)

• Microprocessor controller with 7" full touch interface; temperature/alarm recording and multi‑trace real‑time graph.
• Displayed items: current temperature, editable set‑point, editable alarm limits, energy consumption and optional battery status.
• Ports: SD card slot for data history, USB port for download/updates, SIM slot for GSM module (optional).
• Connectivity: integrated web server (LAN RJ45) and MODBUS TCP/IP support for remote monitoring.
• Safety and alarms: anti‑freeze and anti‑overheat protection, dry contact for remote alarm, acoustic and visual alarms (silenceable) with automatic logging.
• Optional accessories: electronic lock, power‑failure alarm, DMLP TOUCH independent recorder, GSM/Wi‑Fi modules, external terminal board, local and cloud monitoring systems.

Applications and use
Intended for hospitals, clinical laboratories, blood banks and pharmaceutical storage where separate positive and negative temperature storage, traceable recording and alarm management are required for vaccines, medicines and biological samples.

Technical specifications

• Product series: LABOR 2T - TOUCH
• Model: LABOR 2T 400 TOUCH
• Brand: Fiocchetti
• Code: LAD0402
• Net capacity: 170 + 160 L
• Insulation: high‑density injected PU (43 kg/m3), water‑based injection, CFC‑free; thickness 70 mm (back) / 50 mm (sides)
• Structure: monocoque, white plasticized steel with antibacterial film; optional AISI 304 18/10 stainless steel interior
• Power consumption: 4 kWh/24h; absorbed power kW 0.17 + 0.32
• Noise level: <50 dBA; heat rejection EN 12900: 166 W
• Max shelves/drawers: 3 + 3 shelves; drawers up to 5 + 3; wire drawer dimensions and internal measures as per product sheet
• Controller features: 7" FULL TOUCH SCREEN, 0.1°C resolution, ±0.3°C accuracy; SD/USB/SIM slots, LAN/MODBUS TCP/IP
