Laboratory refrigerator LABOR 2T 500 TOUCH

upright2 doorswith opaque door

Product overview

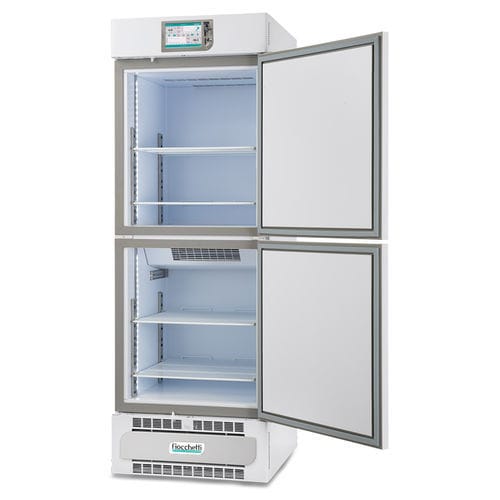

500 L (250+250) combined refrigerator + freezer with independent double cooling units and two solid doors. Designed for storage of medicines, vaccines and thermosensitive materials at positive temperatures and down to -25°C. Integrated 7" full touch display for chamber management and data recording.

Key features

• Combined refrigerator + freezer with two independent cooling circuits and separate chambers.
• 7" full touch screen controller for management of both chambers and data logging.
• Configurable internal storage: shelves, pull‑out drawers or baskets to match medical packaging.
• Two solid doors with integrated handle, magnetic gasket on all sides, automatic lock, 90° door stop and reversible opening.
• Adaptive automatic defrost with condensate vaporization to avoid ice build‑up and reduce downtime.
• Night & Day energy saving function and silenceable acoustic/visual alarms with automatic recording.

Controller
Microprocessor controller with 7" FULL TOUCH SCREEN interface, 0.1°C resolution and ±0.3°C accuracy. Standard functions: temperature and alarm recording, multi‑trace real‑time graph, current temperature display, editable set‑point and alarm limits, energy consumption display and optional battery status. Slots and ports: SD card (data history), USB (download/update) and SIM slot (GSM optional). Integrated web server for LAN (RJ45) and MODBUS TCP/IP. Anti‑freeze and anti‑overheat protection and dry contact for remote alarm. Optional modules: electronic lock, power‑failure alarm kit, DMLP TOUCH independent recorder, GSM/Wi‑Fi modules, external terminal board, local and cloud monitoring systems.

Structure and refrigeration
Inner dimensions: 60 x 58.8 x 70 / 60 x 58.8 x 74 cm. Nominal capacity: 250 + 250 L (total 486 L). Net capacity: 249 + 230 L. Insulation: injected PUF 43 kg/m3, CFC‑free; thickness 75 mm rear / 60 mm sides. Monocoque steel body with antibacterial film, rounded inner corners. Mobility: 4 unidirectional rollers + 2 front feet. Interior full‑height adjustable LED lighting. Refrigeration: professional ventilated; defrost: automatic adaptive with condensate vaporization. Refrigerant: R290. Power consumption: 4.5 kWh/24h.

Accessories available on request

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR local monitoring
• Power failure alarm kit
• External terminal board for ECT‑F TOUCH
• Electronic key / lock
• DMLP TOUCH digital monitor
• Temperature product simulation probes
• GSM and Wi‑Fi modules
• 4‑20 mA converter
• Shelves, pull‑out aluminium drawers (with/without dividers), plexiglass fronts
• Lockable drawer for narcotics
• Wheels kit (2 with brakes)
• Access ports (Ø 35 mm, Ø 15 mm)
• Humidity sensor, PT100 probe
• Alternative power supplies: 220V/1~/60Hz or 115V/1~/60Hz, voltage stabiliser
• Wooden crate packaging

Technical specifications

• Model / Code: LABOR 2T 500 TOUCH / LAD0502
• Temperature ranges: +2/+15°C (positive chamber) | -10/-25°C (freezer chamber)
• Total capacity: 486 L (net 249 + 230 L)
• Nominal capacity: 250 + 250 L
• External dimensions (WxDxH): 72 x 74.5 x 208 cm
• Inner dimensions (per compartment): 60 x 58.8 x 70 / 60 x 58.8 x 74 cm
• Insulation: PUF injected 43 kg/m3, no CFC; thickness 75 mm (back) / 60 mm (sides)
• Shelves max: 3 + 3 (56 x 55 cm)
• Drawers max: 5 + 3 (drawer internal sizes indicated)
• Refrigerant: R290
• Energy consumption: 4.5 kWh/24h
• Power absorption: 0.17 + 0.32 kW; Inrush current: Amp 3 + 5
• Noise level: <50 dBA
• Controller: 7" full touch, 0.1°C resolution, ±0.3°C accuracy; SD/USB/SIM, LAN, MODBUS TCP/IP
