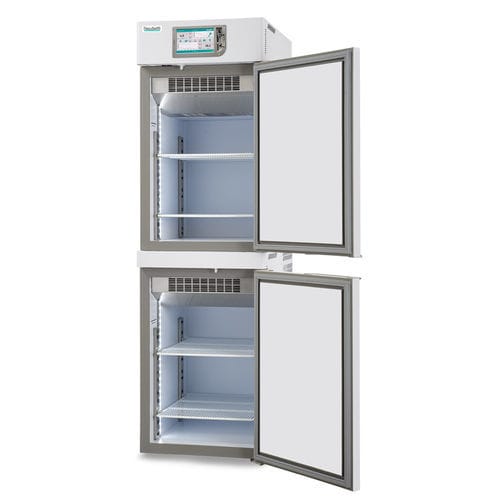

Pharmacy refrigerator LABOR 2T 280 TOUCH

for vaccinesfor hospitalslaboratory

Overview
Combined refrigerator + freezer LABOR 2T 280 TOUCH (280 L total, 140+140) with two independent compartments and dual cooling units. Designed for secure storage of vaccines, pharmaceuticals and temperature‑sensitive materials at positive temperatures and down to -20 °C. 7" full touch screen monitors both chambers and records data.

Key data

• Code: LAD0282
• Temperature ranges: +2/+15 °C | -10/-20 °C
• Capacity (nominal/gross): 140+140 L / 306 L
• Net capacity: 128+128 L
• External dimensions (WxDxH): 52 x 66.5 x 177.5 cm
• Electronic controller: TOUCH (7" full touch screen)

Product details
LABOR 2T combined units provide two separated compartments with independent refrigeration to maintain different temperature zones simultaneously. Each compartment has a solid door with integrated handle, magnetic gasket on all sides, automatic locking with return spring, 90° door stop and reversible opening. Intelligent adaptive defrost and automatic condensate evaporation minimise ice build‑up and downtime. Internal fittings (shelves, drawers, baskets) are configurable to suit vials, boxes and trays for clinical use.

Structure and refrigeration

• Inner dimensions (each compartment): 44 x 51.6 x 56 cm
• Nominal capacity: 140 + 140 L
• Net capacity: 128 + 128 L
• Insulation: injected PUF, high density 43 kg/m3, CFC‑free, water‑based injection
• Insulation thickness: 40 mm
• Structure: monocoque, plasticized non‑toxic white steel interior/exterior with antibacterial film option or inner AISI 304 18/10 stainless steel; rounded inner corners
• 4 unidirectional rollers included; 2 front feet for stability
• Interior lighting: full‑height dimmable LED
• Refrigeration type: professional forced‑air (ventilated)
• Defrost type: automatic adaptive with condensate vaporization
• Night & Day function to reduce power consumption

Electronic controller (7" FULL TOUCH SCREEN)
Microprocessor controller with 7" full touch interface, 0.1 °C resolution and ±0.3 °C accuracy. Standard features: temperature and alarm logging, multi‑trace real‑time graph, current temperature and editable set‑point, editable alarm limits, energy consumption display and optional battery status. Controller door includes 3 SD card slots, USB port and SIM slot (GSM optional). Integrated Web Server for LAN (RJ45) and MODBUS TCP/IP. Anti‑freeze and anti‑overheat protections, dry contact for remote alarm, acoustic and visual alarms (silenceable) with automatic recording. Optional accessories: electronic lock, power‑failure alarm kit, DMLP TOUCH recorder, GSM/Wi‑Fi modules, external terminal board, local/cloud monitoring systems.

Refrigerator technical data

• Refrigerant: R290
• Energy consumption: 4.6 kWh/24h
• Power absorption / current: kW 0.14 + 1.18 / A 0.9 + 1.2
• Inrush current: A 2.5 + 3.5
• Noise level: <45 dBA
• Heat rejection EN 12900: 191 W
• Max shelves: 3 + 3 — shelf dimensions: 40 x 47 cm
• Max drawers: 5 + 3 — drawers with dividers (each compartment): 10 x 45 x 7.5 cm (3 positions)
• Drawers without dividers (LxPxH): 33 x 45 x 7.5 cm

Accessories (available on request)

• Gateway IOT
• FIOCCHETTI LAN SUPERVISOR local monitoring
• Power‑failure alarm kit
• External terminal board for ECT‑F TOUCH
• Electronic lock / digital key
• DMLP TOUCH digital monitor
• Temperature product simulation probe
• DIN 13277 conformity (for ECT‑F TOUCH)
• GSM module
• Wi‑Fi module
• 4‑20 mA converter module
• Shelves for models 100‑140‑280‑300
• Pull‑out aluminium drawers (with/without dividers) for models 100‑140‑280
• Plexiglass front for drawers
• Wheels kit (2 with brakes) for models 100‑140‑280
• Access port Ø 35 mm with stopper; port Ø 15 mm
• Humidity sensor; PT100 probe (free contacts)
• Power supply 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser; wooden crate packaging

Applications and use
Intended for hospitals, laboratories, pharmacies and vaccination centres requiring segregated positive and low‑temperature storage for vaccines, clinical samples and pharmaceuticals. Configurable to meet regulatory and operational monitoring requirements.

Characteristics / technical specifications

• Product name: LABOR 2T 280 TOUCH
• Code: LAD0282
• Type: small combined refrigerator + freezer, two solid doors, double cooling unit
• Nominal capacity: 140+140 L (total 280 L); gross capacity indicated: 306 L
• Net capacity: 128+128 L
• Temperature ranges: +2/+15 °C (refrigerator) | -10/-20 °C (freezer)
• Controller: 7" full touch screen microprocessor with logging, LAN and MODBUS TCP/IP options
• Refrigerant: R290
• Energy consumption: 4.6 kWh/24h
• External dimensions (WxDxH): 52 x 66.5 x 177.5 cm
• Insulation: injected PUF 43 kg/m3, thickness 40 mm
• Refrigeration: professional ventilated with adaptive automatic defrost and condensate vaporization
• Interior lighting: full‑height LED, dimmable
• Construction: monocoque plasticized steel interior/exterior; option inner AISI 304 stainless steel
• Mobility / stability: 4 unidirectional rollers + 2 front feet
• Safety: anti‑freeze & anti‑overheat devices, acoustic/visual alarms, dry contact for remote alarm
