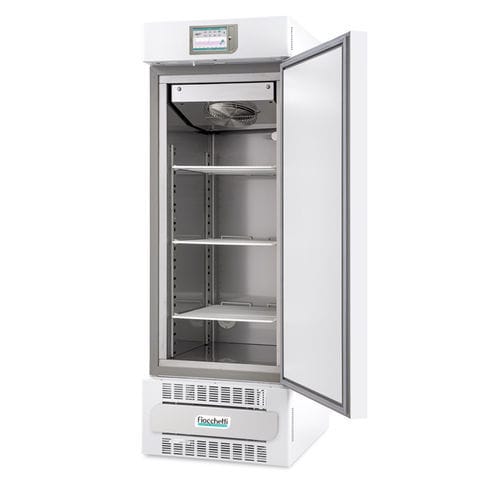

Laboratory freezer SUPERARTIC 400 TOUCH

for clinical laboratoriesuprighton casters

Overview Low-temperature laboratory freezer for storage at -20 / -40°C with solid door, stainless-steel interior and medium nominal capacity (400 L, net 360 L). Certified as Medical Device Risk Class I. Designed for laboratory and clinical use requiring stable ultra-low temperatures and data logging.

Key features

• Solid door with recessed handle and reversible opening
• High-density PUF insulation (43 kg/m3): 70 mm rear / 50 mm sides
• Adaptive defrost with automatic condensate evaporation to prevent ice formation
• Night & Day function for reduced energy consumption
• Mobility: 4 unidirectional rollers and 2 front feet

Controller and monitoring 7" FULL TOUCH SCREEN controller with 0.1°C resolution and ±0.3°C accuracy. Standard functions: temperature and alarm recording, multi-trace real-time graphs, editable set-point and alarm limits, energy consumption and battery status (optional). Slots for SD card (data history), USB (download/update) and SIM (for optional GSM). Integrated Web Server (LAN RJ45) and MODBUS TCP/IP. Dry contact for remote alarm; acoustic and visual alarms are silenceable and recorded.

Refrigeration and structure

• Temperature range: -20 / -40°C
• Refrigerant: R290; professional ventilated refrigeration
• Defrost: automatic adaptive with condensate vaporization
• Interior: 18/10 AISI 304 stainless steel; exterior: atoxic white plastified steel with antibacterial-type film; rounded inner corners

Capacities & dimensions (published)

• Nominal capacity: 400 L; Net capacity: 360 L; Alternative shown: 384 L
• External dimensions (WxDxH): 67 x 81 x 194 cm
• Internal dimensions (WxDxH): 51 x 61 x 125.5 cm

Technical data

• Refrigerant gas: R290
• Energy consumption: 7.5 kWh/24h
• Power absorption / Current: 2 kW / 8.3 A; Inrush current: 3 A
• Noise level: <55 dBA
• Heat rejection (EN 12900): 315 W
• Max shelves/drawers: 6

Accessories available on request

• Electronic lock
• Power-failure alarm kit
• DMLP TOUCH independent recorder
• GSM and Wi‑Fi modules
• External terminal board, IoT gateway, local/cloud monitoring (Fiocchetti LAN SUPERVISOR)
• Racks, aluminum drawers, wheels kit, access ports, PT100 probe, voltage stabiliser, wooden crate packaging

Manufacturer Fiocchetti

Model / code SUPERARTIC 400 TOUCH — Code: SUA0402
