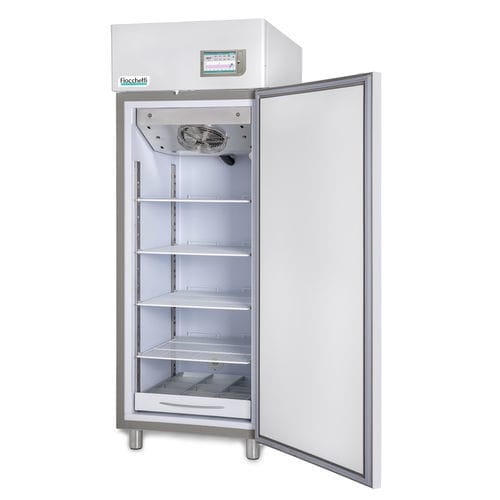

Laboratory freezer SUPERARTIC 700 TOUCH

cabinetuprightvertical

Overview
The SUPERARTIC 700 TOUCH is a large-capacity low-temperature laboratory freezer for stable storage between -20°C and -40°C. Equipped with a solid door, advanced insulation and a 7" full touchscreen controller with data recording; certified as Medical Device Risk Class I for regulated environments.

Main features

• Temperature range -20°C / -40°C
• 7" FULL TOUCH SCREEN controller with 0.1°C resolution and ±0.3°C accuracy
• Solid door with oversized insulation and recessed ergonomic handle (reversible opening)
• Automatic adaptive defrost with condensate collection and automatic evaporation
• Night & Day energy saving function and professional ventilated refrigeration
• Data recording, multi‑trace real‑time graph, editable set‑point and alarm limits

Structure and refrigeration

• Inner dimensions: 60 x 68.6 x 130 cm
• Nominal capacity: 700 L; net capacity: 544 L; panel capacity: 620 L
• PUF injected insulation 43 kg/m3, 75 mm thickness, CFC‑free
• Monocoque structure with plasticized anti‑bacterial white steel interior/exterior or optional AISI 304 stainless steel interior; rounded inner corners
• 4 height‑adjustable feet included

Controller (7" FULL TOUCH SCREEN)

• Microprocessor controller with FULL TOUCH SCREEN 7" interface; shows dynamic values, 0.1°C resolution, ±0.3°C accuracy
• Standard: temperature and alarm recording, multi‑trace graph, editable set‑point and alarm limits, energy consumption display
• Slots: SD card (history), USB (download/update), SIM (GSM optional); integrated web server (LAN RJ45) and MODBUS TCP/IP
• Safety: anti‑freeze and anti‑overheating devices, dry contact for remote alarm; silenciable acoustic/visual alarms with automatic logging
• Optional accessories: electronic lock, power‑failure alarm kit, DMLP TOUCH recorder, GSM/Wi‑Fi modules, external terminal board, local/cloud monitoring

Refrigerator technical data

• Refrigerant: R290
• Energy consumption: 10 kWh/24h
• Power absorption/current: 2 kW / 9.1 A; inrush current 7 A
• Noise level: <60 dBA
• Heat rejection (EN 12900): 416 W
• Shelves/drawers: up to 7; multiple drawer and rack size options

Accessories available on request

• Gateway IOT, LAN Supervisor local monitoring
• Power failure alarm kit; external terminal board for ECT‑F TOUCH
• DMLP TOUCH digital monitor; GSM and Wi‑Fi modules
• 4‑20 mA converter, PT100 probe, voltage stabiliser, wheels kit
• Various shelves, perforated stainless shelves, wire baskets, pull‑out aluminium drawers, plexiglass fronts
• Access ports Ø15 / Ø35 mm, tray for condensate evaporation, wooden crate packaging

Technical specifications

• Model: SUPERARTIC 700 TOUCH (code SUA0702)
• Temperature range: -20 / -40°C
• Capacities: panel 620 L / nominal 700 L / net 544 L
• External dims (WxDxH): 75 x 88 x 208.5 cm; internal dims: 60 x 68.6 x 130 cm
• Insulation: PUF 43 kg/m3, 75 mm; refrigeration ventilated professional, refrigerant R290
• Defrost: automatic adaptive with condensate collection/evaporation
• Controller: 7" FULL TOUCH SCREEN, SD/USB/SIM, LAN/MODBUS TCP/IP
• Power consumption: ~10 kWh/24h; noise <60 dBA; heat rejection 416 W
