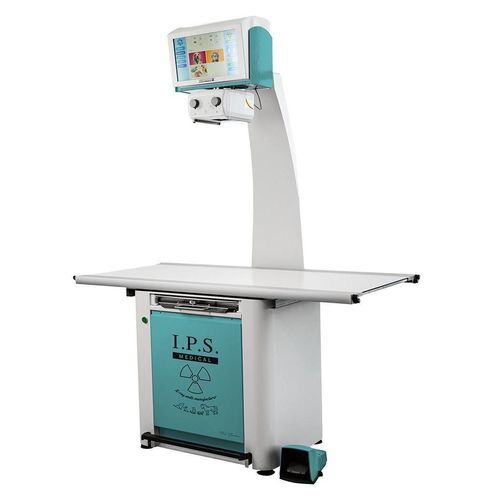

Digital veterinary X-ray system HF 400 II Standard

with table

Overview
High-frequency veterinary X-ray unit with 400 mA capacity designed for diagnostic imaging in small and exotic animals.

Product description
System designed for direct connectivity to digital radiography (DR) systems. Components and certifications updated to 2024. Custom design and manufacture available to meet specific clinical requirements. Rotating head and mobile column enable radiographs at multiple angles for orthopedics and exotic-animal work, improving operator workflow and positioning flexibility.

Key features

• 400 mA high-frequency generator
• Optional head rotation ±90°
• NEMO SPACE VET interface for digital integration
• Patient fastening device
• Steel bucky tray and removable anti-scatter grid

Dimensions
L 150 x W 90 x H 200 cm

X-RAY GENERATOR
Monobloc design
Max power 30 kW
Max voltage 125 kV
Maximum tube current 400 mA
Exposure time range 0.002 to 1 s
X-ray foot switch, two-step, 6 m cable
Leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)

X-RAY TUBE
Rotating-anode X-ray tube
Focal spot 0.6–1.3 mm
Anode angle 15°
Heat capacity 80 kJ – 107 KHU

ANTI-SCATTER GRID
Removable grid 35 x 43 cm, 103 lines/inch (optional 43 x 43 cm, 10 lines/inch)

POWER
Standard voltage 230/240 V ±10% 50–60 Hz
Power consumption < 1 A

OPTIONAL

• X-ray hand switch
• Table top up to 2 m on request
• Mobile column
• Removable anti-scatter grid 43 x 43 cm option
• Custom colours on request

TABLE
Patient support table, 4-way with mechanical brakes
Max load 100 kg
Table absorption thickness 0.5–0.8 mm
Film-focus distance 100 cm
Standard tabletop length 150 cm (extended on request)

SCREEN FUNCTIONS
Automatic programmed X-ray technique (APR)
Selectable operating system
15" multi-language touchscreen monitor
Anatomical programs configurable by operator
Patient input by weight (kg) and thickness (cm)

COLLIMATOR
manual field setting
Variable field up to 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp 160–220 lux at 100 cm with automatic switch

Technical specifications

• Model: HF 400 II Standard
• Product type: High-frequency veterinary radiology unit (400 mA)
• Dimensions: L 150 x W 90 x H 200 cm
• X-ray generator: Monobloc, Max power 30 kW, Max voltage 125 kV
• Max tube current: 400 mA
• Exposure time: 0.002–1 s
• X-ray tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 kJ–107 KHU
• Anti-scatter grid: removable 35 x 43 cm, 103 lines/inch (optional 43 x 43 cm)
• Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)
• Power: 230/240 V ±10% 50–60 Hz; < 1 A
• Table: 4-way, mechanical brakes; capacity 100 kg; standard length 150 cm; FFD 100 cm
• Control: APR, selectable OS, 15" touchscreen, anatomical programming
• Options: head rotation ±90°, NEMO SPACE VET interface, hand switch, mobile column, extended tabletop
