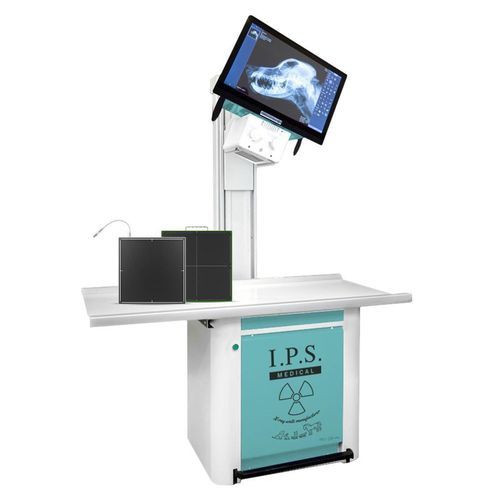

Digital veterinary X-ray system HF 400 II Pro

with table

Overview
HF 400 II Pro Full Digital is a veterinary full-digital radiography system designed for multi-angle clinical imaging. The unit integrates a rotating X‑ray head and a mobile column for examinations in orthopedics and exotic animal diagnostics. Connectivity with direct digital systems and detector options (wired/wireless) support streamlined clinical workflows.

Main features

• 21" Full HD touch screen monitor
• EIZO medical monitor (second 24" monitor available)
• Head rotation ±90° and variable column for lateral projections
• NEMO SPACE VET interface for veterinary workflow
• Patient fastening device and steel bucky tray
• Removable anti-scatter grid

Technical specifications
Dimensions
L 150 x W 98 x H 200 cm

X-RAY GENERATOR
Monobloc
Max power 30 kW
Max voltage 125 kV
Max current 400 mA
Exposure time selection 0.002–1 s
Two-step X-ray foot switch, 6 m cable
Leakage radiation < 3.5 μSV/h (IEC EN 60601-1-3)

X-RAY TUBE
Rotating-anode X-ray tube
Focal spot 0.6–1.3 mm
Anode angle 15°
Heat capacity 80 KJ – 107 KHU

ANTI-SCATTER GRID
Removable grid 35 x 43 cm, 103 lines/inch (standard)
Optional 43 x 43 cm, 10 lines/inch

POWER
Standard voltage 230/240 V ±10% 50–60 Hz
Power consumption < 1 A

COLLIMATOR
Manual field setting
Variable range up to 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp 160–220 lux at 100 cm with automatic switch

OPTIONAL

• X-ray hand switch
• Extended tabletop up to 2 m on request
• Removable anti-scatter grid 43 x 43 cm (optional)
• Custom colors on request

Patient table / Mechanical and operational data
4-way patient support table with mechanical brakes
Maximum patient weight capacity 100 kg
Table absorption thickness 5 mm / 0.8 mm
Variable film-focus distance
Standard tabletop length 150 cm (200 cm on request)
21" Full HD touchscreen for operator efficiency

EXAMVUE DUO SOFTWARE
Intuitive veterinary software for patient and owner registration, anatomical selection, thickness-based parameter setting and veterinary measurements with tutorial. Reprogrammable anatomical presets on request. Full digital workflow in a single interface.

X-RAY DETECTOR
Wireless
Scintillator: Direct Deposit CsI:Tl
Active area: 433.5 x 433.5 mm
Pixel pitch: 154 µm
Image acquisition time: 4–5 s (wireless)

Wired
Scintillator: Direct Deposit CsI:Tl
Active area: 430 x 430 mm
Pixel pitch: 140 µm
Image acquisition time: 2–3 s (wired) / 2–4 s (other wired option)

Technical highlights

• Direct connectivity with digital systems and PACS
• Rotating head and movable column for multi-angle radiography
• Monobloc generator up to 30 kW; 125 kV, 400 mA
• Exposure range 0.002–1 s; leakage < 3.5 μSV/h (IEC EN 60601-1-3)
• CsI:Tl detectors wired or wireless with fast acquisition times
• Designed for veterinary use: positioning guides and exam presets
