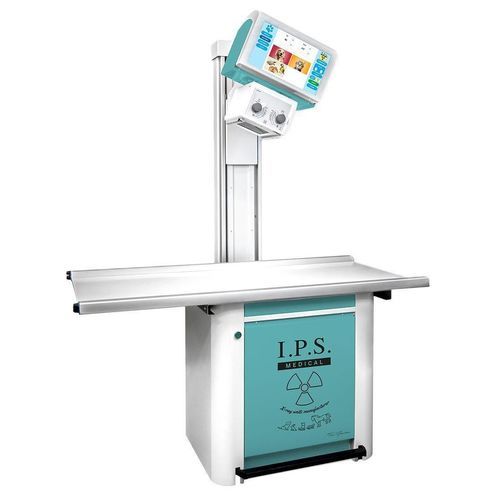

Digital veterinary X-ray system HF 400 II Pro

with table

DescriptionConnectivity with direct digital radiology systems. Components and certifications updated to 2024. Custom design and manufacturing available to meet specific veterinary requirements. The rotating head and mobile column enable radiographic examinations of exotic animals and orthopedic procedures by allowing multiple angular projections, reducing handling time and simplifying operator workflow.

Key features

• Head rotation ±90°
• Mobile column for lateral projections
• NEMO SPACE VET interface
• Patient restraint device
• Steel bucky tray
• Removable anti-scatter grid

Data sheet / main configuration highlightsMonobloc X-ray generator; X-ray tube with rotating anode; focal spot options 0.6–1.3 mm; removable anti-scatter grid; standard tabletop length 150 cm. Selectable exposure times from 0.002 to 1 s. Two-step X-ray foot switch with 6 m cable included.

Technical specifications

• Dimensions: L 150 x W 98 x H 200 cm
• X-RAY GENERATOR:
  • Monobloc
  • Max power: 30 kW
  • Max voltage: 125 kV
  • Max current: 400 mA
  • Exposure time range: 0.002–1 s
  • Two-step X-ray foot switch, 6 m cable
  • Leakage radiation < 3.5 μSv/h (according to IEC EN 60601-1-3)
• X-RAY TUBE:
  • Rotating anode
  • Focal spot: 0.6–1.3 mm
  • Anode angle: 15°
  • Heat capacity: 80 KJ – 107 KHU
• ANTI-SCATTER GRID: Removable 35 x 43 cm, 103 lines/inch (optional 43 x 43 cm, 210 lines/inch)
• POWER:
  • Standard voltage: 230/240 V ±10% 50–60 Hz
  • Power consumption: < 1 A
• OPTIONAL EQUIPMENT:
  • X-ray hand switch
  • Tabletop up to 200 cm on request
  • Removable anti-scatter grid 43 x 43 cm, 210 lines/inch
  • Custom colors on request
• TABLE / PATIENT SUPPORT:
  • 4-way patient support table with mechanical brakes
  • Max load: 100 kg
  • Table absorption thickness: 0.5–0.8 mm
  • Variable film-focus distance
  • Standard tabletop length: 150 cm (up to 200 cm on request)
• SCREEN / USER INTERFACE:
  • Automatic programmed radiographic technique (APR)
  • Selectable operating system
  • 15" multi-language touchscreen monitor
  • Anatomical programs programmable by the operator
  • Patient parameter input by weight and thickness
• COLLIMATOR:
  • Manual field setting
  • Variable field up to 43 x 43 cm @ 100 cm SID
  • High-intensity white LED lamp
  • 160–220 lux at 100 cm with automatic switch
