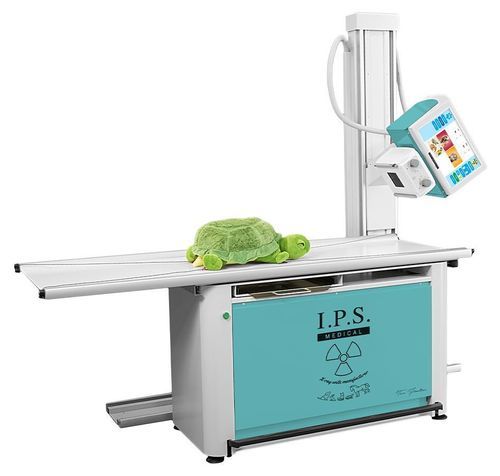

Digital veterinary X-ray system HF 400 II Elite

with table

Overview
Connectivity with any direct digital radiology system. Components and certifications updated to 2024. Custom design and construction of radiological equipment on request. Rotating head and moving column enable diagnostic radiography for exotic animals and orthopedic applications; the movement dynamics allow images at multiple angles to streamline operator workflow.

Key features

• Head rotation +/- 90°
• Variable column for lateral projections
• Floor track system for flexible positioning
• NEMO SPACE VET interface
• Patient fastening device
• Table top 2 meters long
• Steel bucky tray
• Removable x-ray grid

Dimensions
L 150 x W 98 x H 200 cm

X-RAY GENERATOR
Monobloc
Max Power 30 kW
Max Voltage 125 kV
Max Power Supply 400 mA
Exposure time selection from 0.002 to 1 s
X-ray foot switch, 2-step, cable 6 m long
Leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)

X-RAY TUBE
Rotating anode x-ray tube
Focal spot 0.6 - 1.3 mm
Anode angle 15°
Heat capacity 80 KJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (standard)

POWER
Standard voltage 230/240 V ±10% 50-60 Hz
Power consumption < 1 A

OPTIONAL

• X-ray hand switch
• Removable anti-scatter grid 43 x 43 cm, 10 lines/inch
• Custom colors available on request

PATIENT SUPPORT TABLE
4-way patient support table with mechanical brakes
Max weight capacity 100 kg
Table absorption thickness 5 mm / 0.8 mm
Variable film‑focus distance
Standard table top length: 200 cm

SCREEN FUNCTIONS
Automatic programmed x-ray technique (APR)
Selectable operating system
15" multi-language touch monitor
Anatomical programs programmable by the operator
Patient parameter selection by weight and thickness

COLLIMATOR
Manual field setting
Variable field up to 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp
160–220 lux at 100 cm with automatic switch

Technical specifications

• Connectivity with direct digital radiology systems
• Components and certifications updated to 2024
• Rotating head +/- 90° for multi-angle projections
• Variable column for lateral projections
• Floor track system for flexible positioning
• NEMO SPACE VET interface
• Patient fastening device
• Table top length: 200 cm
• Overall dimensions: L 150 x W 98 x H 200 cm
• Generator: Monobloc, Max 30 kW, Max 125 kV, Max 400 mA
• Exposure time: 0.002–1 s
• Foot switch: 2-step with 6 m cable
• Leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)
• Tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 KJ–107 KHU
• Anti-scatter grid: removable 35 x 43 cm (103 lines/inch)
• Power: 230/240 V ±10% 50-60 Hz; consumption < 1 A
• Optional: hand switch; removable grid 43 x 43 cm (10 lines/inch); custom colors
• Patient table: 4-way, mechanical brakes, max 100 kg
• Screen: APR, selectable OS, 15" touch monitor, programmable anatomical programs
• Collimator: manual, up to 43 x 43 cm @ 100 cm SID; LED lamp 160–220 lux
