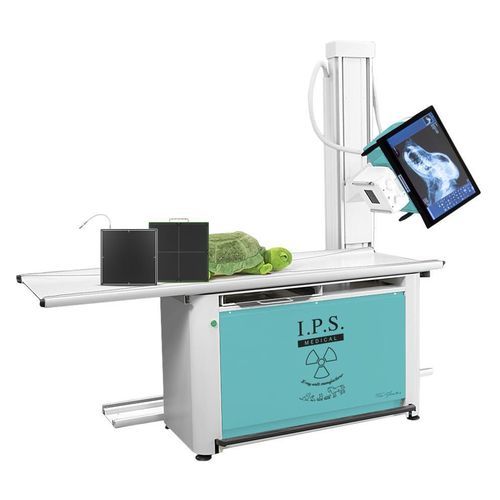

Digital veterinary X-ray system HF 400 II Elite

with table

Overview
Compact full-digital veterinary radiography system designed for general veterinary practice and orthopedics. Connectivity with direct digital radiology systems; components and certifications updated to 2024. Custom design and manufacture available to meet specific clinical needs. The rotating head and mobile column enable multi-angle projections for exotic animals and orthopedic studies, improving positioning flexibility and workflow efficiency.

Key Features

• 21” full HD touch screen for operator station
• EIZO medical monitor (optional second monitor) with 7 m video cable
• Head rotation ±90° for oblique and varied projections
• Variable column for lateral and specialized projections
• Floor track system for extended coverage
• NEMO SPACE VET interface for veterinary workflow
• Patient fastening device and positioning aids
• Stainless steel bucky tray
• Removable anti-scatter grid

Data sheet — Dimensions
Overall dimensions: L 150 x W 98 x H 200 cm
Standard table top length: 200 cm

X-RAY GENERATOR
Type: Monobloc generator
Max power: 30 kW
Max voltage: 125 kV
Max current supply: 400 mA
Exposure time selection: 0.002 – 1 s
X-ray foot switch: 2-step, cable length 6 m
Leakage radiation: < 3.5 μSv/h (in accordance with IEC EN 60601-1-3)

X-RAY TUBE
Rotating anode X-ray tube
Focal spot: 0.6 – 1.3 mm
Anode angle: 15°
Heat capacity: 80 KJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (optional 43 x 43 cm, 10 lines/inch)

POWER
Standard voltage: 230/240 V ±10% 50–60 Hz
Power consumption: < 1 A

COLLIMATOR
Manual field setting
Variable field at 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp: 160–220 lux at 100 cm with automatic switch

OPTIONAL

• X-ray hand switch
• Removable anti-scatter grid 43 x 43 cm (optional)
• Different colors and custom finishes on request

Patient support / Table
4-way patient table with mechanical brakes
Maximum load: 100 kg
Tabletop absorption thickness: 5 mm / 0.8 mm
Variable focus-film distance
21” full HD touch screen for improved operator efficiency

EXAMVUE DUO SOFTWARE
Intuitive software for patient and owner registration, anatomical selection and veterinary-specific measurements with built-in tutorials
Thickness-based exposure presets and programmable anatomical parts (reprogrammable on request)
Positioning guide to assist veterinarians and technicians for anatomically accurate imaging
Full Digital workflow: perform the complete examination within a single interface to reduce steps and operator switching
Optional second EIZO medical monitor: 24”

X-RAY DETECTOR — Wireless
Scintillator: Direct Deposit CsI:TI
Active area: 433.5 x 433.5 mm
Pixel pitch: 154 µm
Image acquisition time (wireless): ~4–5 s

X-RAY DETECTOR — Wired
Scintillator: Direct Deposit CsI:TI
Active area: 430 x 430 mm
Pixel pitch: 140 µm
Image acquisition time (wired): ~2–4 s

Notes
Designed specifically for veterinary radiology with flexible column and rotating head to facilitate multi-angle projections and clinical workflows.

Technical specifications

• Series / Model family: HF 400 II (Philosophy series)
• Generator: Monobloc, max power 30 kW
• Max voltage: 125 kV
• Max current: 400 mA
• Exposure time range: 0.002 – 1 s
• X-ray tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 KJ – 107 KHU
• Dimensions: L 150 x W 98 x H 200 cm
• Patient table: 4-way, max capacity 100 kg, tabletop length 200 cm
• Detector options: wired and wireless CsI:TI detectors (active areas ~430–433.5 mm)
• Interface & monitor: 21” touch screen; optional second EIZO 24” medical monitor
• Compliance: leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)
• Brand: I.P.S. Medical
