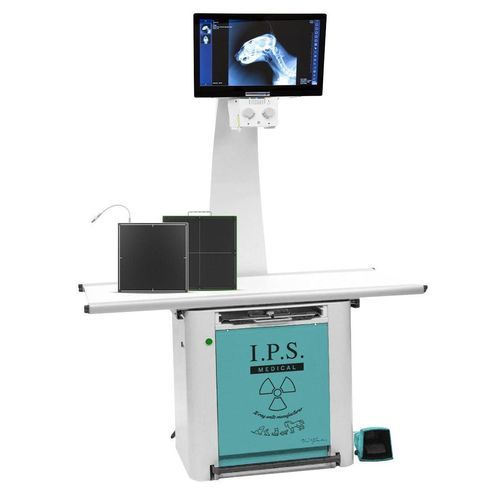

Digital veterinary X-ray system HF 400 II Standard

with table

Product overview
HF 400 II Standard Full Digital is a 400 mA high-frequency X-ray unit from the Philosophy HF 400 II line, engineered for veterinary radiology and animal diagnostics. Connectivity with any direct digital system is provided. Components and certifications updated to 2024. Custom design and construction of radiological equipment available on request. The unit features a rotating head and moving column for diagnostic flexibility on exotic animals and orthopedics, allowing radiographs at different angles and simplifying operator workflow.

Main features

• 21” full HD touch screen monitor
• EIZO medical monitor with 7 m video cable
• Head rotation ±90° (optional)
• NEMO SPACE VET interface
• Patient restraint device
• Steel bucky tray
• Removable anti-scatter grid

Dimensions
L 150 x W 90 x H 200 cm

X-RAY GENERATOR
Monobloc generator
Max power 30 kW
Max voltage 125 kV
Max current supply 400 mA
Exposure time selection from 0.002 to 1 s
X-ray foot switch, 2-step, cable 6 m long
Leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)

X-RAY TUBE
Rotating anode X-ray tube
Focal spot 0.6–1.3 mm
Anode angle 15°
Heat capacity 80 KJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (standard)

POWER
Standard voltage 230/240 V ±10% 50–60 Hz
Power consumption < 1 A

COLLIMATOR
Manual field setting
Variable field up to 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp 160–220 lux at 100 cm with automatic switch

OPTIONAL

• X-ray hand switch
• Table top up to 2 m long on request
• Removable anti-scatter 43 x 43 cm 10 lines/inch
• Different colors available on request
• Side panel holder for horizontal projections
• Mobile column and rotating head ±90°

TABLE
4-way patient support table with mechanical brakes
Maximum patient weight 100 kg
Table absorption thickness 5 mm / 0.8 mm
Film-focus distance 100 cm
Standard tabletop length: 150 cm (up to 200 cm on request)
21” full HD touch screen to improve operator efficiency

X-RAY DETECTOR
Wireless: CsI scintillator direct deposit; active area 433.5 x 433.5 mm; pixel pitch 154 µm; image acquisition time 4–5 s (wireless)
Wired: CsI scintillator direct deposit; active area 430 x 430 mm; pixel pitch 140 µm; image acquisition time 2–4 s (wired)

Characteristics / Technical specifications

• Series / Model: HF 400 II (Philosophy series)
• Maximum tube current / supply: 400 mA
• X-ray generator max power: 30 kW
• Maximum voltage: 125 kV
• Exposure time range: 0.002 – 1 s
• X-ray tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 KJ – 107 KHU
• Dimensions: L 150 x W 90 x H 200 cm
• Table: standard top length 150 cm; film-focus distance 100 cm; max patient weight 100 kg
• Detector active area (wireless): 433.5 x 433.5 mm; pixel pitch 154 µm; acquisition time 4–5 s
• Detector active area (wired): 430 x 430 mm; pixel pitch 140 µm; acquisition time 2–4 s
• Anti-scatter grid: removable 35 x 43 cm (103 lines/inch); optional 43 x 43 cm (10 lines/inch)
• Power supply: 230/240 V ±10% 50–60 Hz; power consumption < 1 A
• Safety: leakage radiation < 3.5 μSv/h (IEC EN 60601-1-3)
