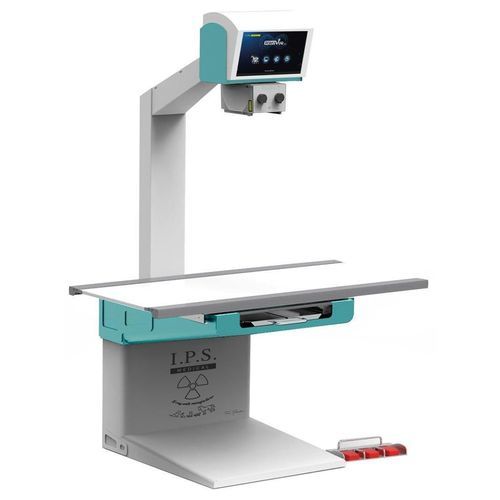

Digital veterinary X-ray system Divina Standard

with table

Product overview
Variable-height motorised diagnostic table designed for veterinary radiology and animal diagnostics. Motorised stretcher table with vertical travel to reduce clinician strain and to improve the quality and reproducibility of imaging procedures. Direct connectivity with digital radiography systems. Components and certifications updated to 2024. Custom design and manufacture of radiological equipment available on request. Rotating head and moving column permit multi-angle radiographs for exotic species and orthopedic examinations, streamlining operator workflow.

Main specifications

• Head rotation +/- 90° (optional)
• NEMO SPACE VET interface
• Motorised diagnostic table with variable height
• Foot pedals for movement and motor brake
• Direct Digital Panel included

Dimensions
L 150 x W 105 x H 205 cm

X-RAY GENERATOR
Type: Monobloc
Max power: 30 kW
Max voltage: 125 kV
Max current supply: 400 mA
Exposure time range: 0.002 – 1 s
X-ray foot switch with 2-step trigger, 6 m cable
Leakage radiation: < 3.5 μSv/h (in accordance with IEC EN 60601-1-3)

X-RAY TUBE
Rotating anode X-ray tube
Focal spot: 0.6 – 1.3 mm
Anode angle: 15°
Heat capacity: 80 KJ – 107 KHU

ANTI-SCATTER GRID
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (standard)
Optional: 43 x 43 cm, 210 lines/inch

POWER
Standard voltage: 230/240 V ±10% 50–60 Hz
Power consumption: < 1 A

OPTIONAL
X-ray hand switch
Table top up to 2 m on request
Removable anti-scatter grid 43 x 43 cm 210 lines/inch
Different colors available on request
DR flat panel holder for lateral projections
Mobile column and rotating head +/- 90°
Floor track

TABLE / PATIENT SUPPORT
Patient support table 4-way with mechanical brakes
Max load capacity: 100 kg
Table absorption thickness: 5 mm / 0.8 mm
Film–focus distance (SID): 100 cm
Standard tabletop length: 150 cm (up to 200 cm on request)
Foot pedals for tabletop movement and motor brake

SCREEN FUNCTIONS
Automatic programmed X-ray technique (APR)
Selectable operating system
15" multi-language touch screen monitor
Anatomical programs preloaded and reprogrammable by operator
Patient parameter input by weight (kg) and thickness (cm)

COLLIMATOR
Manual field setting
Variable field up to 43 x 43 cm @ 100 cm SID
High-intensity white LED lamp
160–220 lux at 100 cm with automatic switch

Technical specifications

• Model: Divina Standard (variable-height motorised diagnostic table)
• Dimensions: L 150 x W 105 x H 205 cm
• X-ray generator: Monobloc, max 30 kW, max 125 kV, max 400 mA
• Exposure time range: 0.002 – 1 s
• X-ray tube: rotating anode; focal spot 0.6–1.3 mm; anode angle 15°; heat capacity 80 KJ – 107 KHU
• Leakage radiation: < 3.5 μSv/h (IEC EN 60601-1-3)
• Anti-scatter grid: removable 35 x 43 cm 103 lines/in; optional 43 x 43 cm 210 lines/in
• Power: 230/240 V ±10% 50–60 Hz; consumption < 1 A
• Table: 4-way with mechanical brakes, capacity 100 kg; standard top 150 cm (up to 200 cm on request)
• Controls: foot pedals and motor brake; 15" touchscreen with APR and reprogrammable anatomical programs
• Connectivity: compatible with direct digital panels; Direct Digital Panel included
