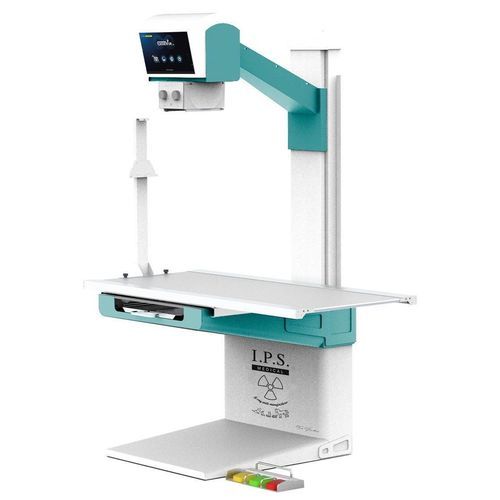

Digital veterinary X-ray system Divina Pro

with table

Overview
Variable column X-ray unit with rotating head, designed for veterinary radiology and animal diagnostics, including exotic species and orthopedic projections. Motorized stretcher/table with vertical adjustment improves operator ergonomics and supports efficient clinical workflows. Direct digital connectivity enables integration with any DR system. Components and certifications updated to 2024. Custom design and manufacture of radiological equipment available on request.

Key features

• Connectivity with any direct digital (DR) system
• Motorized stretcher/table with variable height
• Rotating head and moving column for multi-angle projections
• Direct digital flat panel (DR) included
• Foot pedals for table movement and motor brake
• Optional head rotation ±90°

Dimensions
X-ray unit dimensions:
L 150 x W 110 x H 200 cm

X-ray generator (summary)
Monobloc generator · Max power 30 kW · Max voltage 125 kV · Max current 400 mA · Exposure time selection 0.002 – 1 s · X-ray foot switch 2-step, cable 6 m · Leakage radiation less than 3.5 μSv/h (in accordance with IEC EN 60601-1-3)

X-ray tube (summary)
Rotating anode X-ray tube · Focal spot 0.6–1.3 mm · Anode angle 15° · Heat capacity 80 KJ – 107 KHU

Anti-scatter grid
Removable anti-scatter grid 35 x 43 cm, 103 lines/inch (standard)

Power (summary)
Standard voltage 230/240 V ±10% 50–60 Hz · Power consumption < 1 A

Optional items (examples)

• X‑ray hand switch
• Tabletop up to 2.0 m on request
• Removable anti-scatter grid 43 x 43 cm
• 210 lines/inch anti-scatter grid option
• Custom colors on request
• DR flat panel holder for lateral projections
• Floor track

Additional equipment and table data
Patient support table: 4-way support with mechanical brakes · Max load capacity 100 kg · Table absorption thickness: 5 mm / 0.8 mm · Film-focus distance (FFD/SID): 100 cm · Standard tabletop length: 150 cm (up to 200 cm on request) · Foot pedals for table movement and motor brake

Technical specifications

• Model: Divina Pro
• Application: Veterinary radiology and animal diagnostics (including exotics and orthopedics)
• Dimensions: L 150 x W 110 x H 200 cm
• X-ray generator: Monobloc, max power 30 kW, max voltage 125 kV, max current 400 mA
• Exposure time range: 0.002 – 1 s
• X-ray tube: rotating anode, focal spot 0.6–1.3 mm, anode angle 15°
• Heat capacity: 80 KJ – 107 KHU
• Leakage radiation: less than 3.5 μSv/h (IEC EN 60601-1-3)
• Anti-scatter grid: removable 35 x 43 cm (103 lines/inch) standard; optional 43 x 43 cm (210 lines/inch)
• Power: 230/240 V ±10% 50–60 Hz, power consumption < 1 A
• Patient table: 4-way with mechanical brakes, max load 100 kg, standard tabletop 150 cm (up to 200 cm available)
• Controls: 15" touchscreen multi-language (APR, selectable OS, anatomical programs reprogrammable by operator)
• Accessories: foot pedals, 2-step X-ray foot switch (6 m cable), optional hand switch, DR flat panel holder, floor track
• Interface: NEMO SPACE VET supported
